E60, E61, E63, E64, E87, E90, E91 - System Overview Of Central Information Display

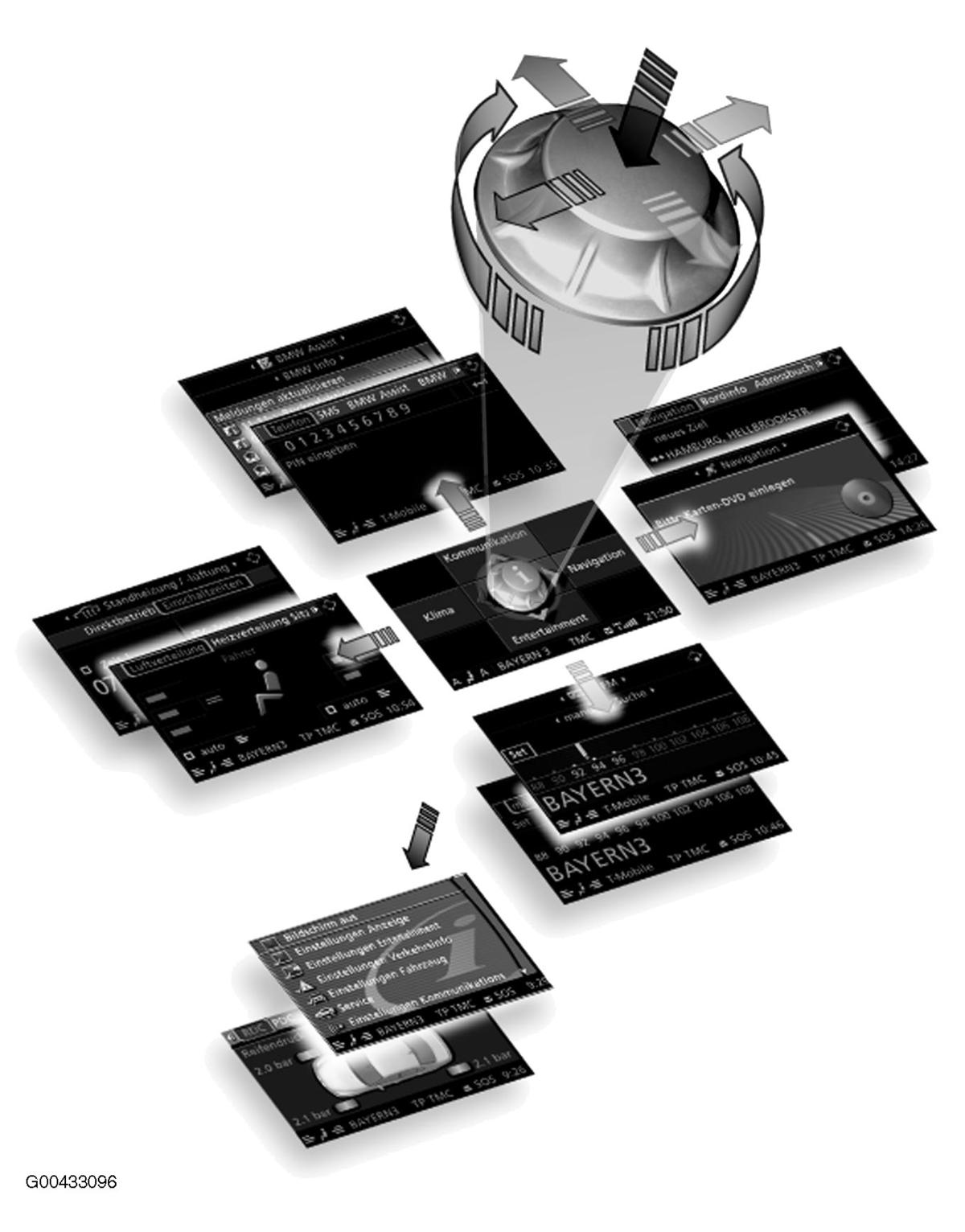

Overview of the menus
NOTE:
The graphics may not be current in relation to the menus
The graphics shown here were taken from a simulation. Contents and layout of the menus may not necessarily be exactly as shown here. The display of the menus also depends on the optional equipment installed.
The system overview of the Central Information Display (CID) is subdivided as follows:
- Inputs/outputs - E60, E61, E63, E64
- System circuit diagram - E60, E61, E63, E64
- Inputs/outputs - E87, E90
- System circuit diagram - E87, E90

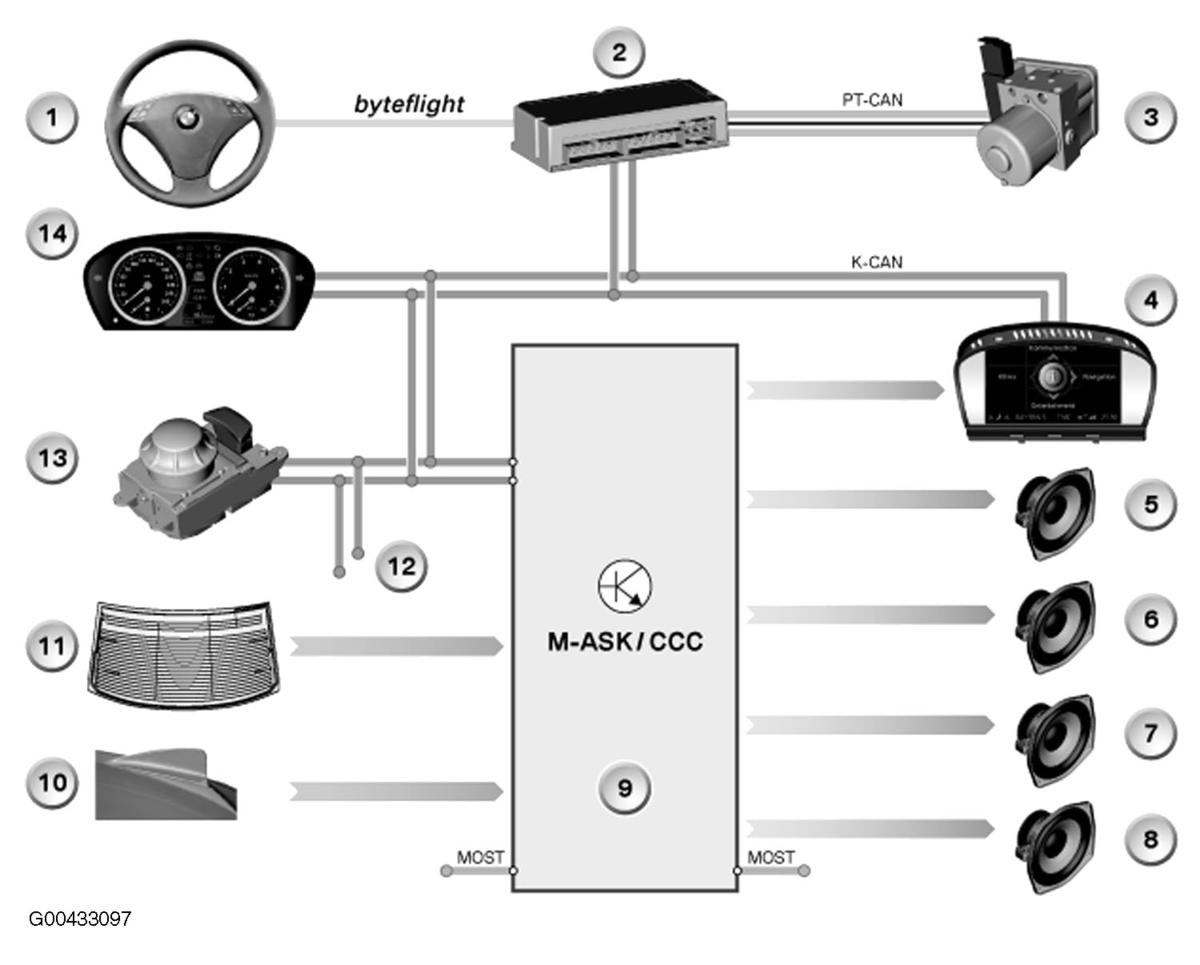

Inputs/outputs - E60, E61, E63, E64
Fig 2: Identifying System Overview Of Central Information Display Inputs/Outputs: E60, E61, E63, E64, E87, E90, E91
SYSTEM OVERVIEW OF CENTRAL INFORMATION DISPLAY INPUTS/OUTPUTS: E60, E61, E63, E64, E87, E90, E91
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Multi-function steering wheel on the steering column switch cluster (SZL) | 2 | Safety and gateway module (SGM) |
| 3 | Dynamic Stability Control (DSC) | 4 | Central Information Display (CID) |
| 5 | Loudspeaker, front left | 6 | Loudspeaker, front right |
| 7 | Loudspeaker, rear left | 8 | Loudspeaker, rear right |
| 9 | Multi-audio system controller (M-ASK) / Car Communication Computer (CCC) | 10 | GPS aerial |
| 11 | Radio aerial in the rear window | 12 | Connection to other control units on the K-CAN, e.g. light module (dimmer) |
| 13 | Controller = central control element) | 14 | Instrument cluster |
| byteflight | Bus for passive safety | K-CAN | Body CAN |
| MOST | Media-Oriented System Transport | PT-CAN | Powertrain CAN |

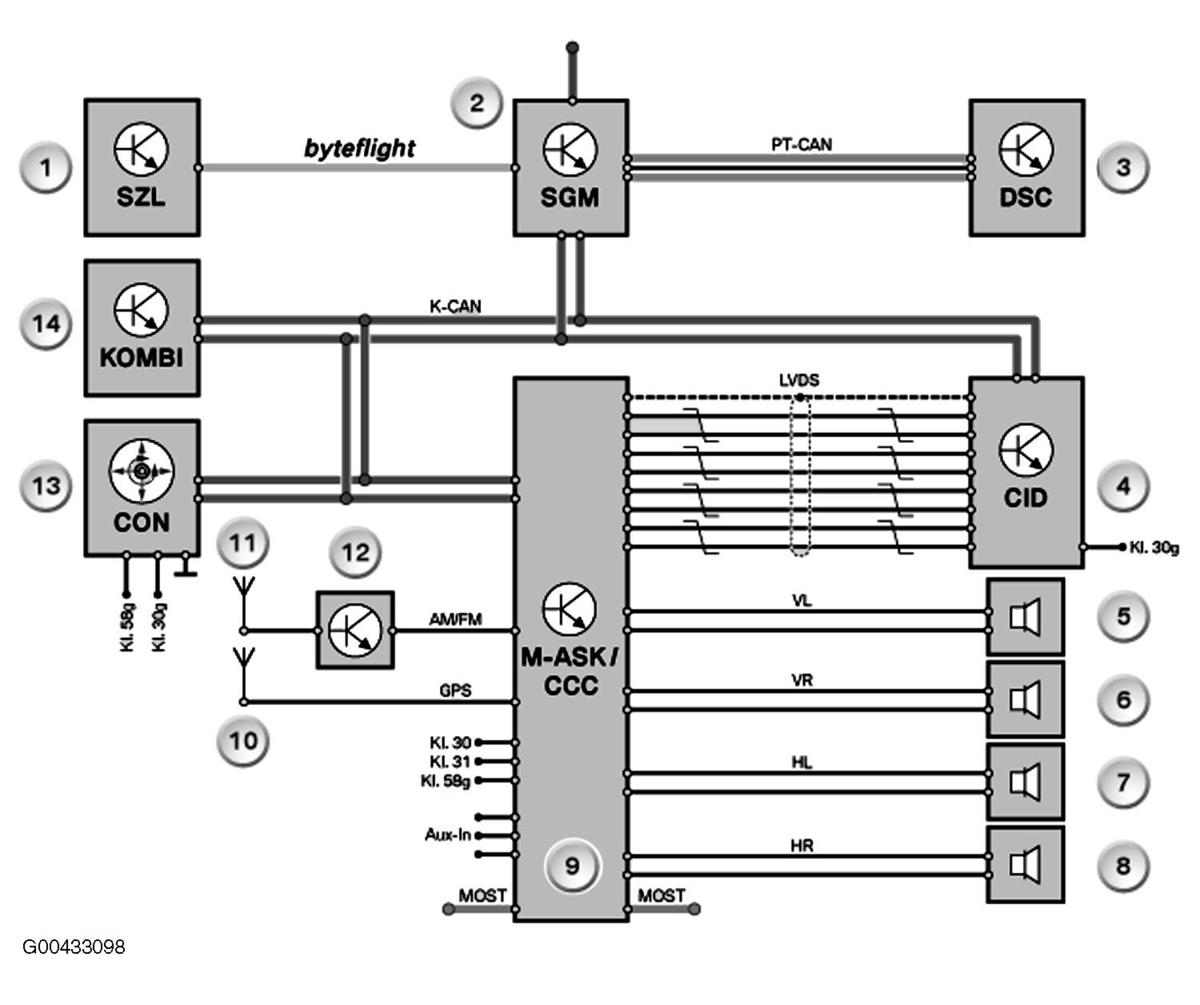

System Circuit Diagram - E60, E61, E63, E64
Fig 3: Identifying System Overview Of Central Information Display System Circuit Diagram - E60, E61, E63, E64
SYSTEM OVERVIEW OF CENTRAL INFORMATION DISPLAY SYSTEM CIRCUIT DIAGRAM - E60, E61, E63, E64
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Multi-function steering wheel on the steering column switch cluster (SZL) | 2 | Safety and gateway module (SGM) with diagnosis connection |
| 3 | Dynamic Stability Control (DSC) | 4 | Central Information Display (CID) |
| 5 | Loudspeaker, front left | 6 | Loudspeaker, front right |
| 7 | Loudspeaker, rear left | 8 | Loudspeaker, rear right |
| 9 | Multi-audio system controller (M-ASK) / Car Communication Computer (CCC) | 10 | GPS aerial |
| 11 | Radio aerial | 12 | aerial diversity |
| 13 | Controller = central control element) | 14 | Instrument cluster (KOMBI) |
| AM/FM | Amplitude modulation/frequency modulation | AUX-In | AUX-In connection |
| byteflight | Bus for passive safety | GPS | Global Positioning System |
| HL | Rear left | HR | Rear right |
| K-CAN | Body CAN | Kl. 30 | Terminal 30 |
| Kl. 30g | Terminal 30g active | Kl.31 | Terminal 31 |
| Kl. 58g | Locating lamp | LVDS | Low Voltage Differential Signalling |
| MOST | Media-Oriented System Transport | PT-CAN | Powertrain CAN |
| VL | Front left | VR | Front right |

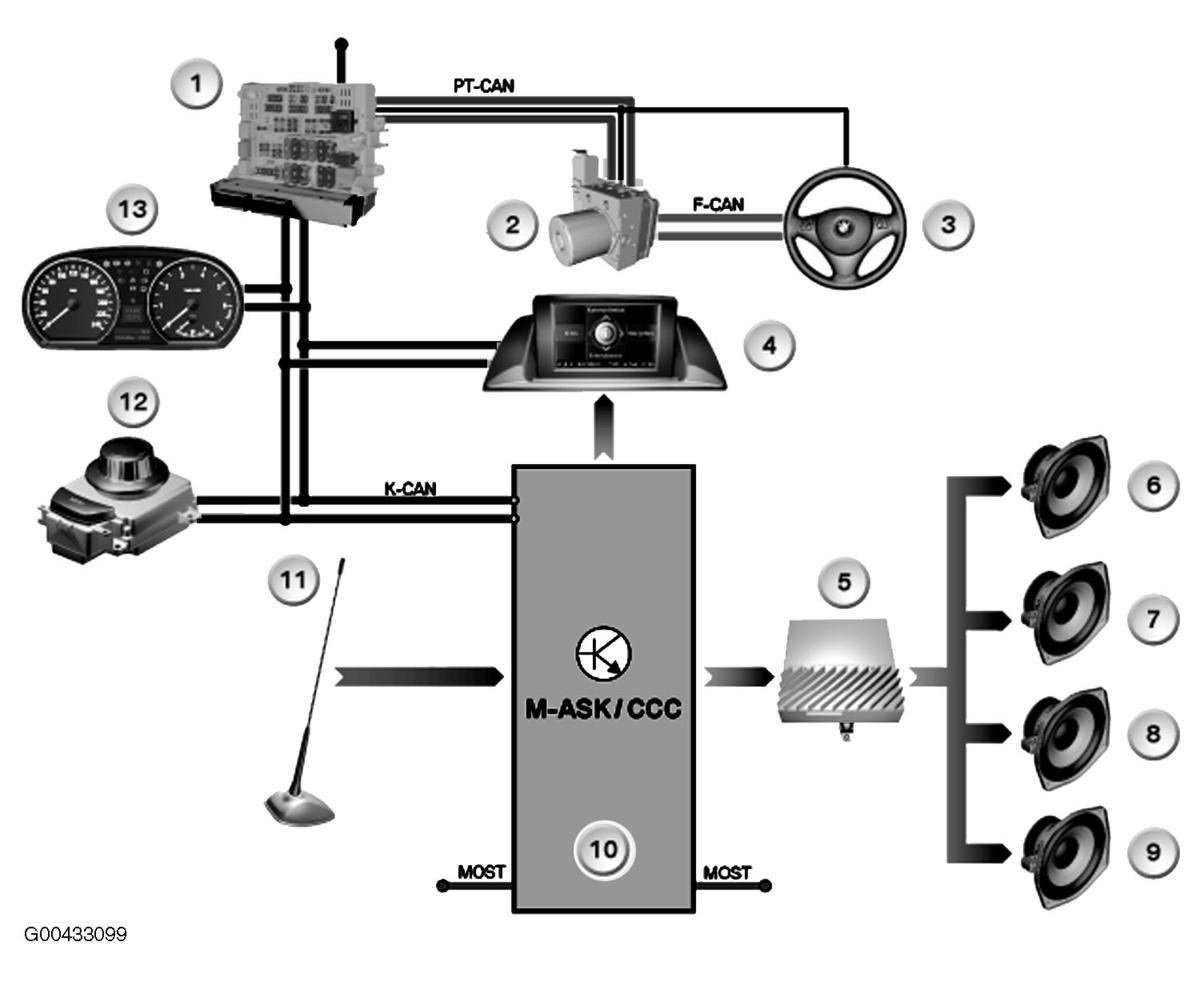

Inputs/Outputs On E87, E90, E91
Fig 4: Identifying System Overview Of Central Information Display System Inputs/Outputs On E87, E90, E91
SYSTEM OVERVIEW OF CENTRAL INFORMATION DISPLAY SYSTEM INPUTS/OUTPUTS ON E87, E90, E91
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Junction box electronics (JBE) | 2 | Dynamic Stability Control (DSC) |
| 3 | Multi-function steering wheel on the steering column switch cluster (SZL) | 4 | Central Information Display (CID), folding for E87 |
| 5 | Audio amplifier | 6 | Loudspeaker, front left |
| 7 | Loudspeaker, front right | 8 | Loudspeaker, rear left |
| 9 | Loudspeaker, rear right | 10 | Multi-audio system controller (M-ASK) / Car Communication Computer (CCC) |
| 11 | GPS aerial and radio aerial | 12 | Controller = central control element) |
| 13 | Instrument cluster | ||
| F-CAN | Chassis CAN | K-CAN | Body CAN |
| MOST | Media-Oriented System Transport | PT-CAN | Powertrain CAN |

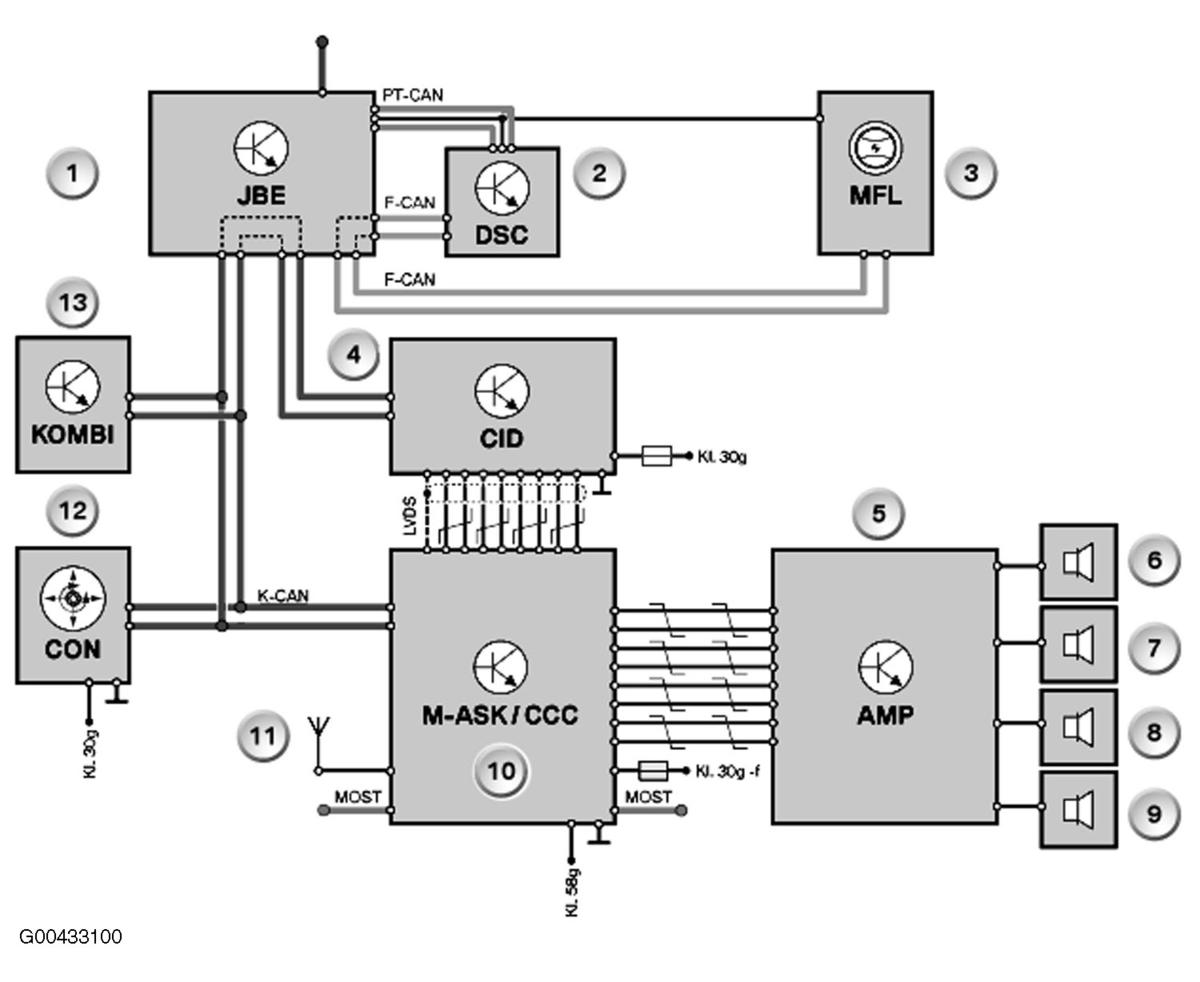

System Circuit Diagram For E87, E90, E91
Fig 5: Identifying System Overview Of Central Information Display System circuit diagram for E87, E90, E91
SYSTEM OVERVIEW OF CENTRAL INFORMATION DISPLAY SYSTEM CIRCUIT DIAGRAM FOR E87, E90, E91
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Junction box electronics (JBE) | 2 | Dynamic Stability Control (DSC) |
| 3 | Multi-function steering wheel on the steering column switch cluster (SZL) | 4 | Folding Central Information Display (CID) |
| 5 | Audio amplifier | 6 | Loudspeaker, front left |
| 7 | Loudspeaker, front right | 8 | Loudspeaker, rear left |
| 9 | Loudspeaker, rear right | 10 | Multi-audio system controller (M-ASK) / Car Communication Computer (CCC) |
| 11 | GPS aerial and radio aerial | 12 | Controller = central control element) |
| 13 | Instrument cluster (KOMBI) | ||
| F-CAN | Chassis CAN | K-CAN | Body CAN |
| Kl. 30g | Terminal 30g active | Kl. 30g-f | Terminal 30 switched (specific MOST nodes are switched off if a fault develops in idle status) |
| Kl. 58g | Locating lamp | MOST | Media-Oriented System Transport |
| PT-CAN | Powertrain CAN |
