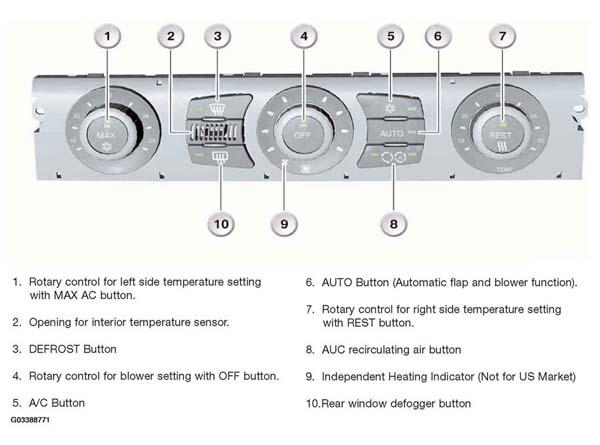

IHKA Control Panel/Module: Notes
The IHKA Control Panel/Module controls the following functions:
- Desired Temperature Setting, Left/Right
- Air Volume (Automatic and Manual Blower Settings)
- A/C On/Off Switch
- Recirculation Control (Including AUC)
- Rear Window Defogger
- MAX A/C
- Defrost Function
There are additional functions such as air distribution (defrost, face and footwell) and air stratification that are selected and controlled with the controller in the CID.
