SMG Control Module

The SMG Control Module is a single-board unit with a modular connector system (SKE with 5 sockets) and is located next to the ECM in the E box. See Fig 1 and Fig 2 .

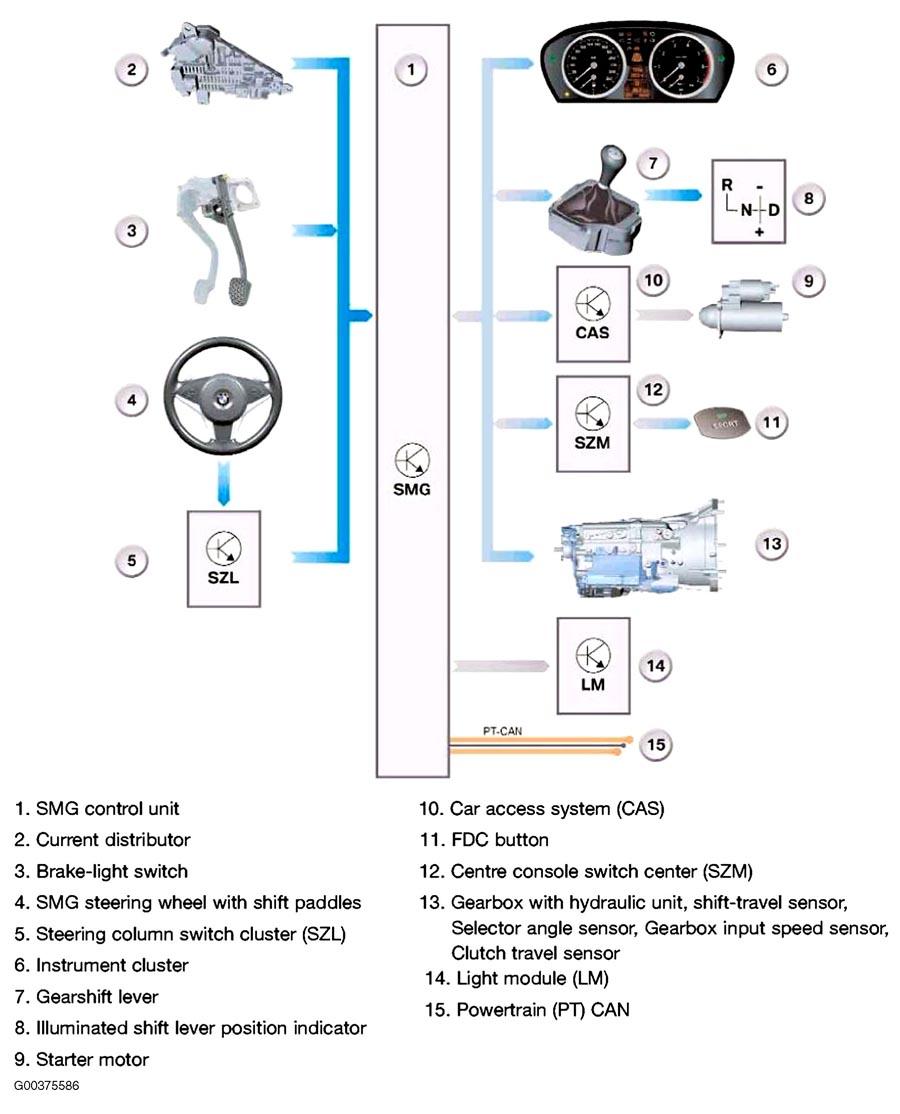

Fig 1: Identifying System Components

Courtesy of BMW OF NORTH AMERICA, INC.

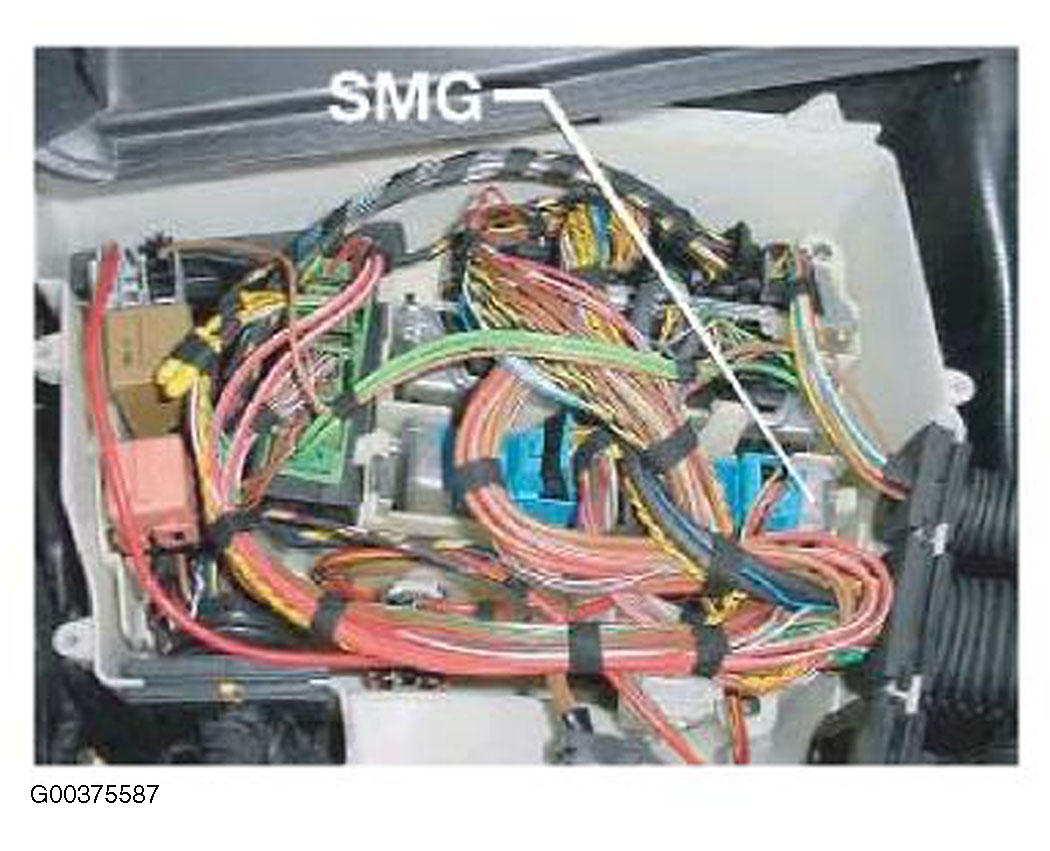

Fig 2: Identifying SMG Control Module Location

Courtesy of BMW OF NORTH AMERICA, INC.
