Wheel Alignment Specifications

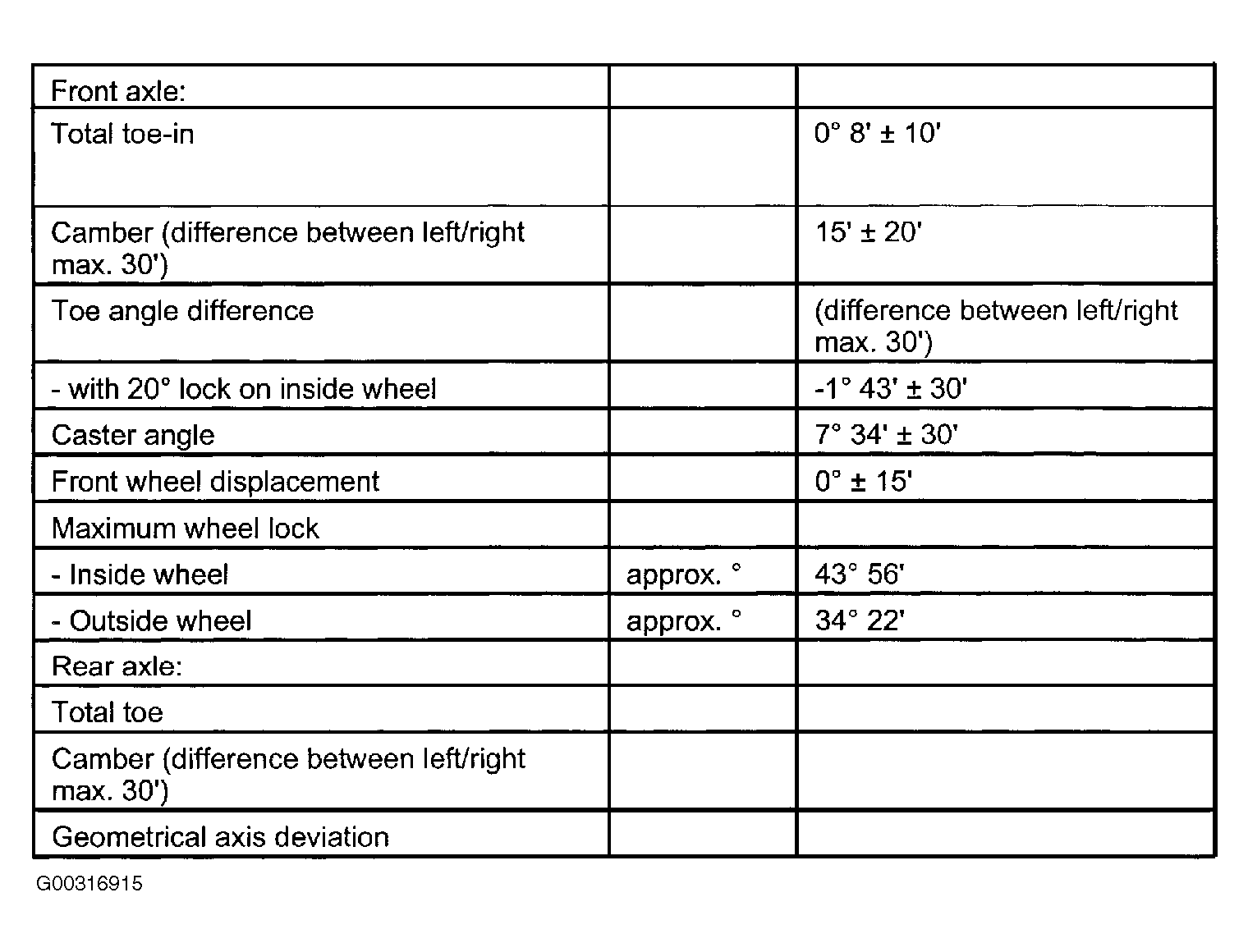

Fig 1: Wheel Alignment Specifications (Normal Suspension)
Courtesy of BMW OF NORTH AMERICA, INC.

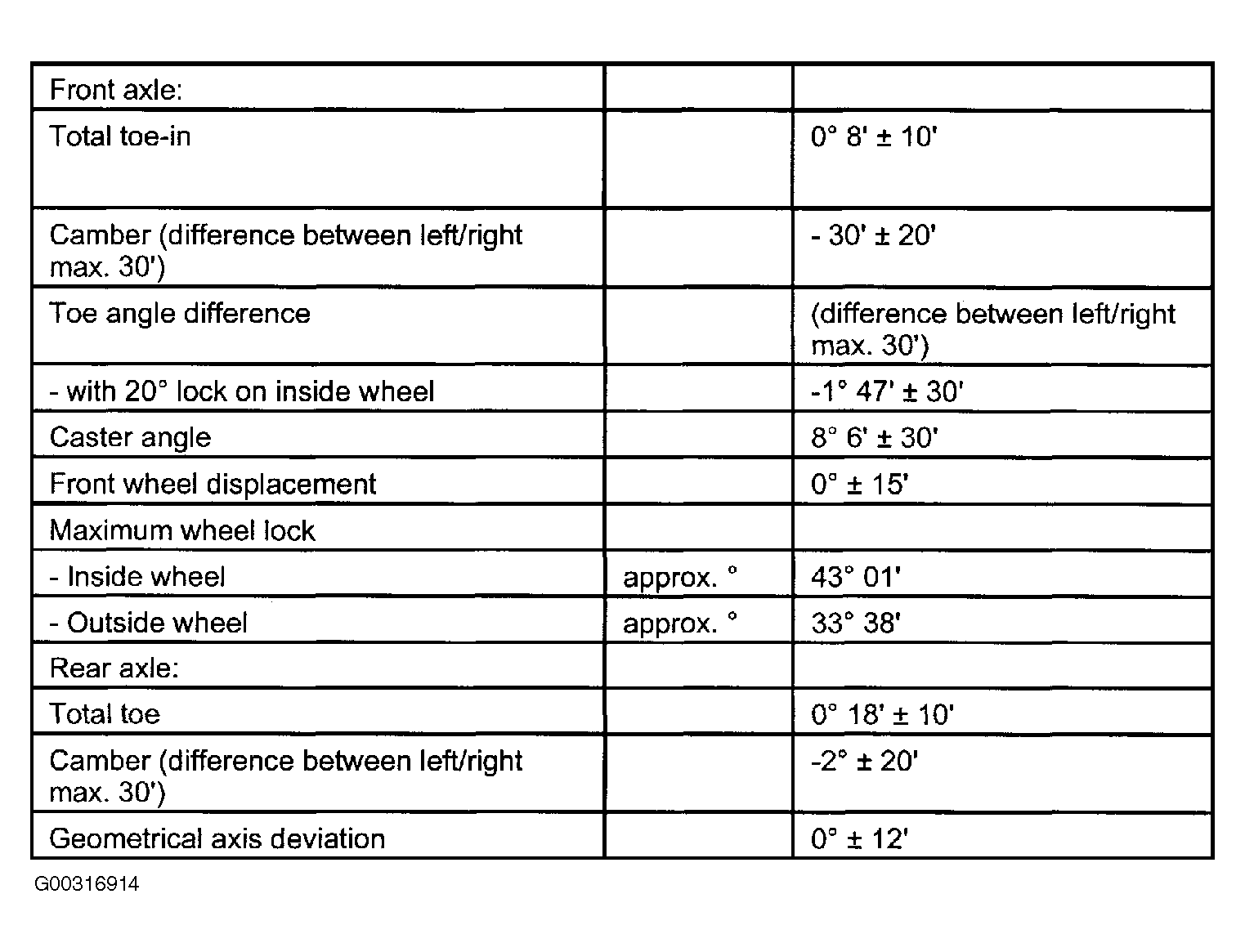

Fig 2: Wheel Alignment Specifications (Low Slung Sports Suspension)
Courtesy of BMW OF NORTH AMERICA, INC.

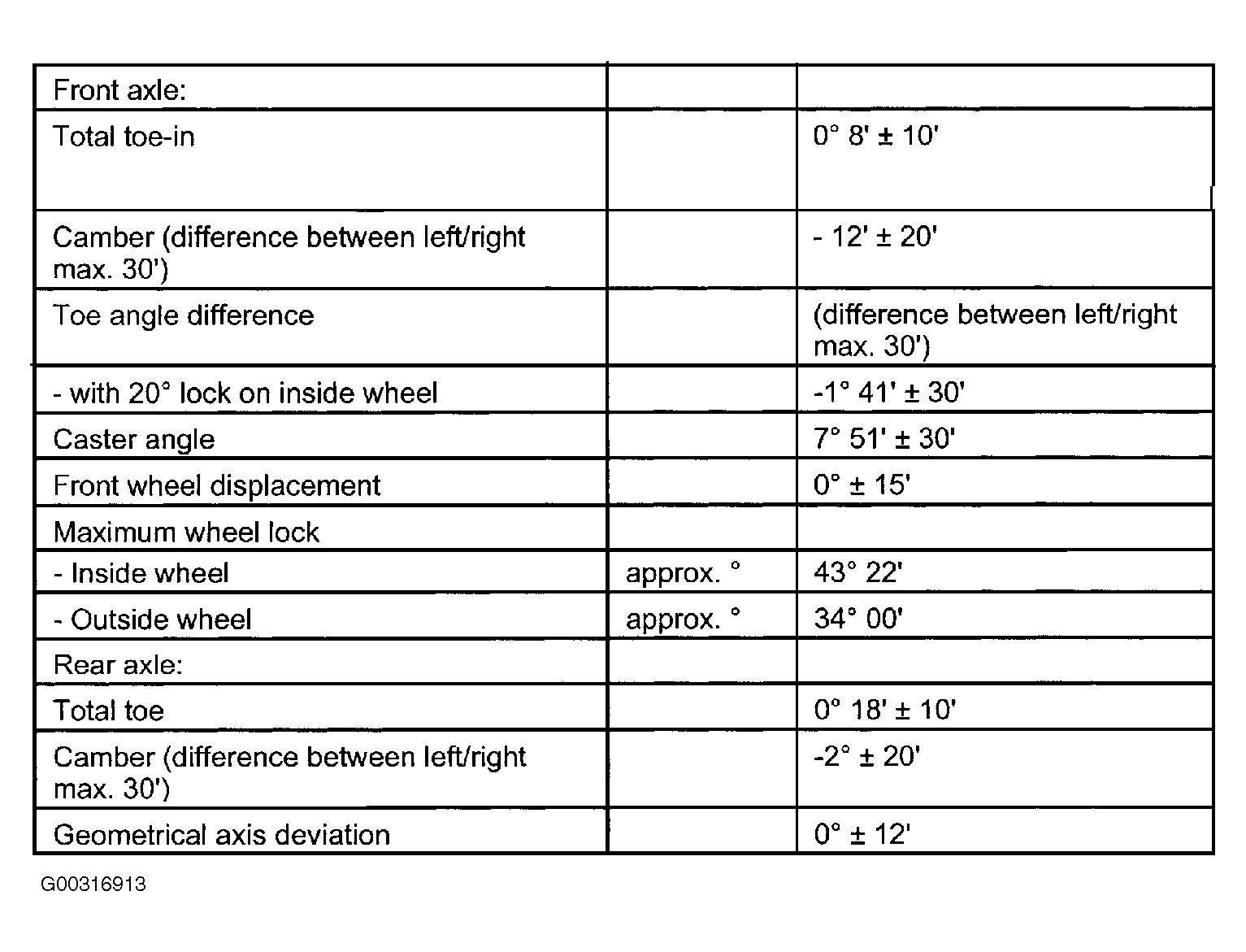

Fig 3: Wheel Alignment Specifications (Rough Road Package)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
