61 61... Overview of windshield washer system and headlight cleaning system (SRA)

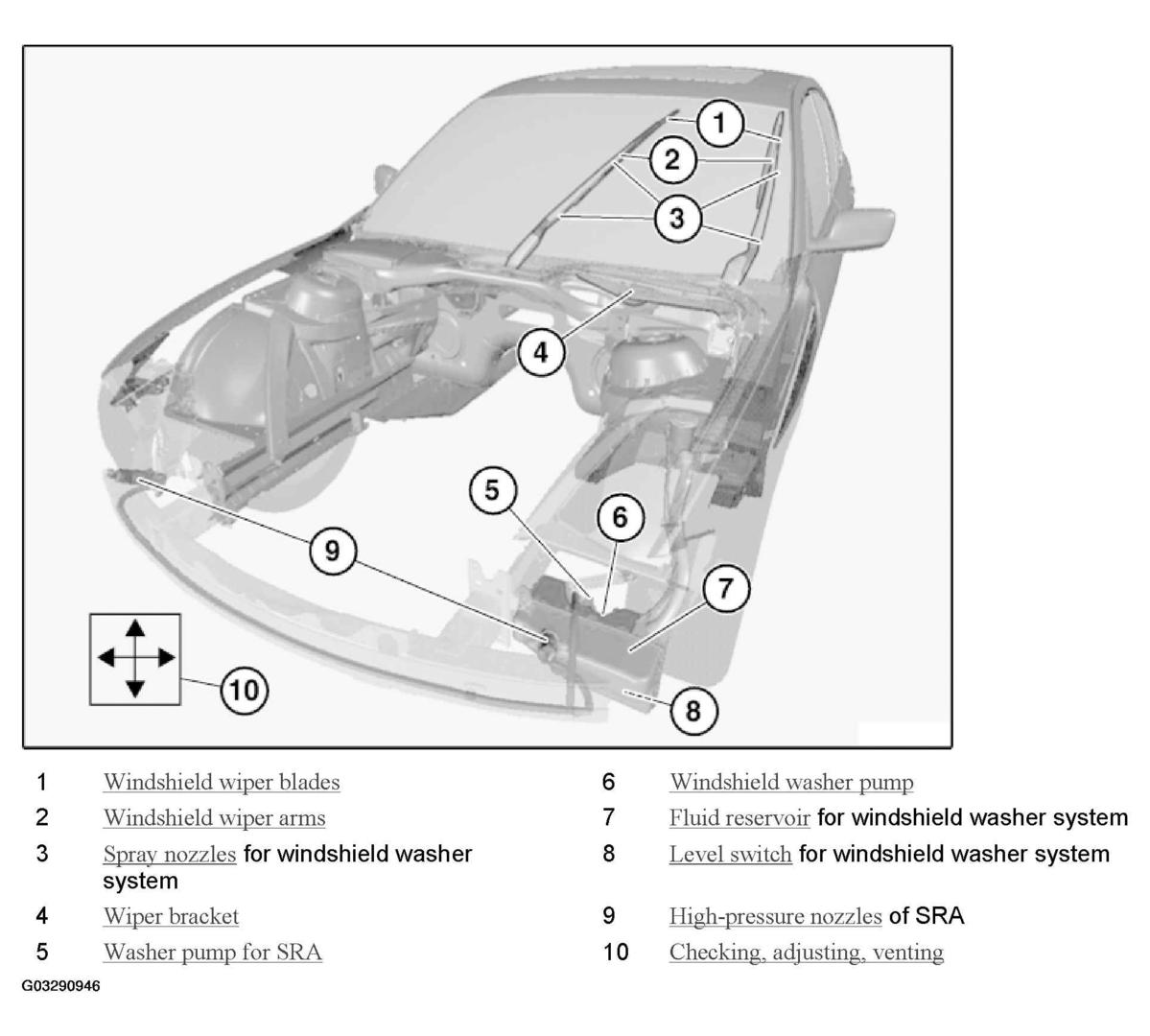

Fig 1: Overview Of Windshield Washer System And Headlight Cleaning System
G03290946Courtesy of BMW OF NORTH AMERICA, INC.
