IHKA Automatic Heating & Air Conditioning System - Overview - E65 & E66
>>
IHKA Automatic Heating and Air Conditioning System
>>
Control Panel/Control Module
>>
Functions Of Other Buttons On The Control Panel
>>
Functional Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

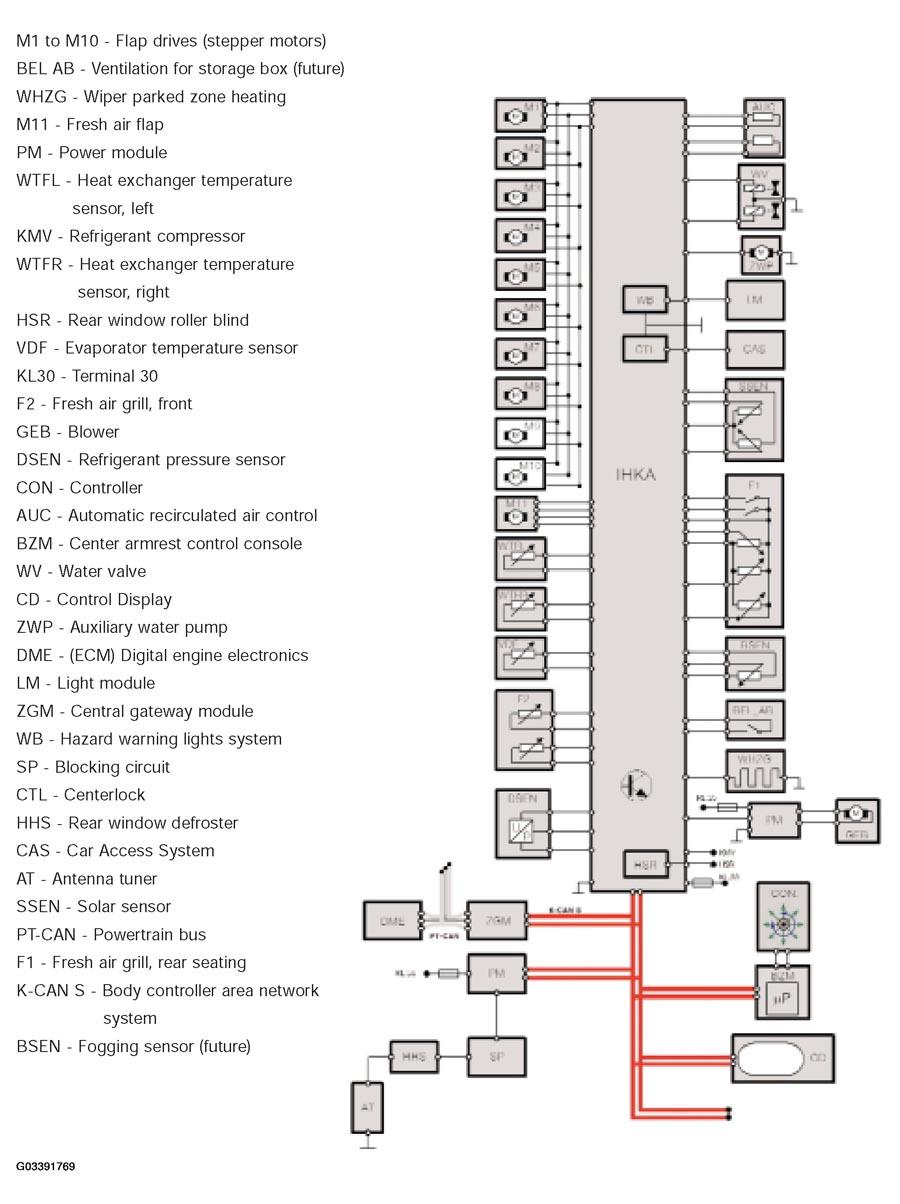

Functional Circuit Diagram
Fig 1: Functional Circuit Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
