65 77 690 Removing And Installing/Replacing Central Gateway Module (Up To Build Date 03/2004)

Necessary Preliminary Tasks:

NOTE: Follow instructions for handling optical fibres. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Unlock catch (1) in direction of arrow.

Pull central gateway module (2) out of control unit carrier (3) slightly.

Disconnect plug connections (4).

Remove central gateway module (2).

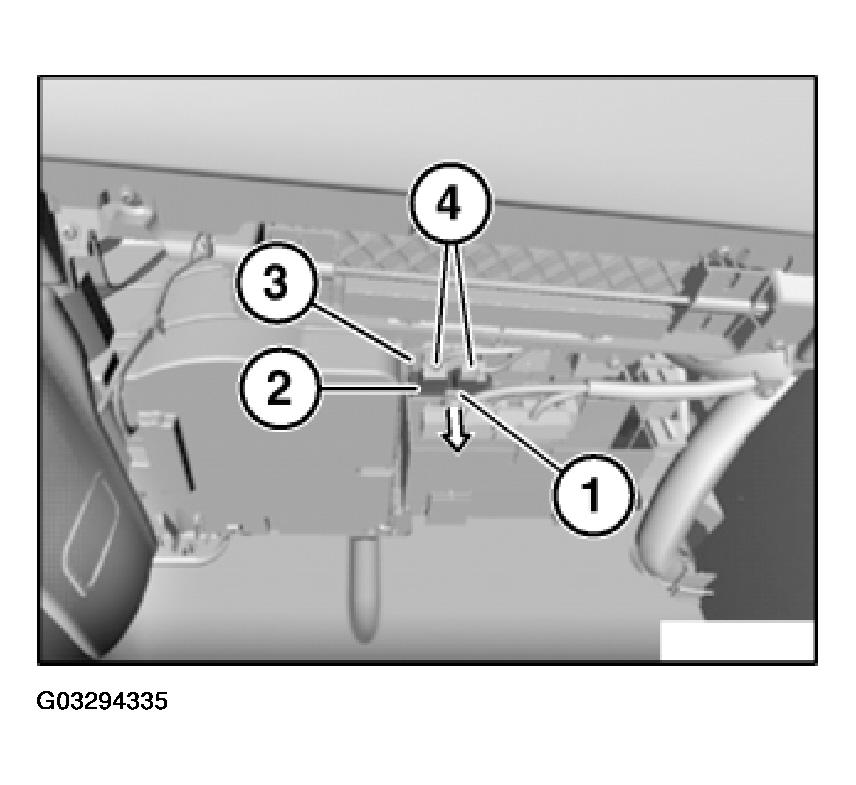

Fig 1: Central Gateway Module, Catch, Plug Connections, Control Unit Carrier And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

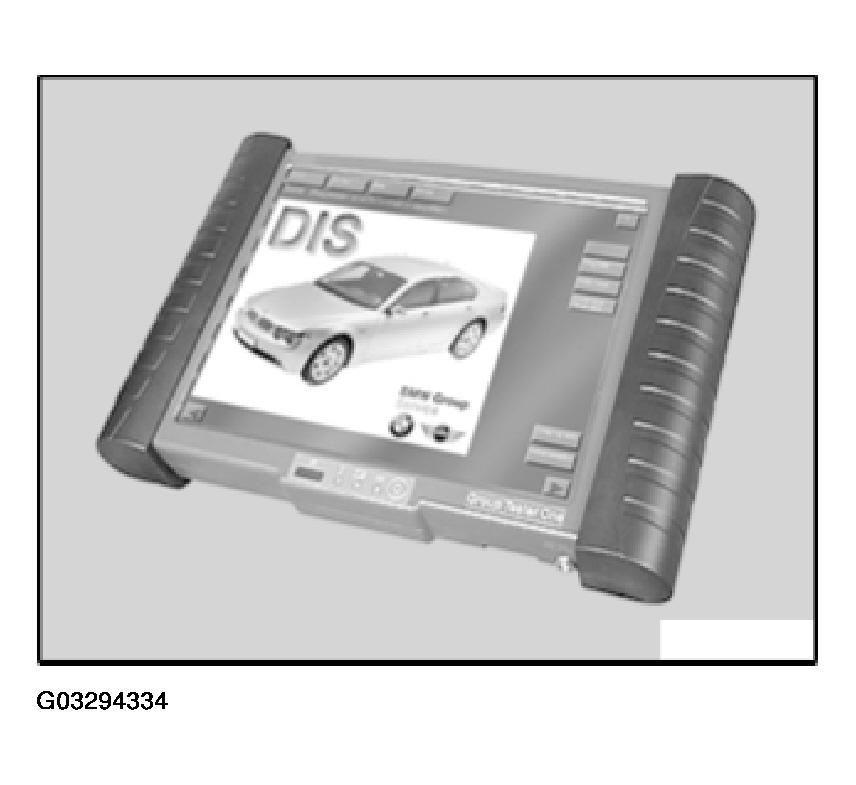

Fig 2: Programming Unit (DIS)
