61 35 955 Removing And Installing/Replacing Interior Antenna For Comfort Access System - Driver's Side Front

Necessary Preliminary Tasks:

• Remove footwell side trim panel on A-pillar on left. Refer to 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT .
• Remove left front seat. Refer to 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .

Release expansion rivets (1).

Fold up cable duct (2) cover in direction of arrow and remove from floor trim panel (3).

Installation:

Feed guide (4) of cable duct cover (2) correctly in floor trim panel (3).

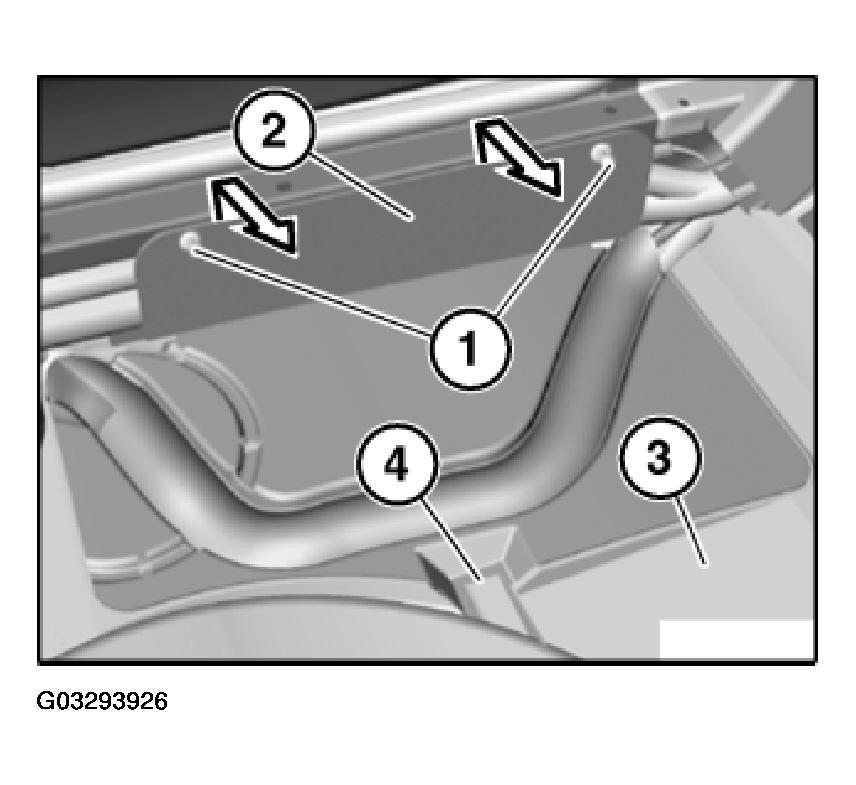

Fig 1: Expansion Rivets, Cable Duct, Floor Trim Panel, Guide And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Remove interior antenna for comfort access system (2) from floor trim panel (3).

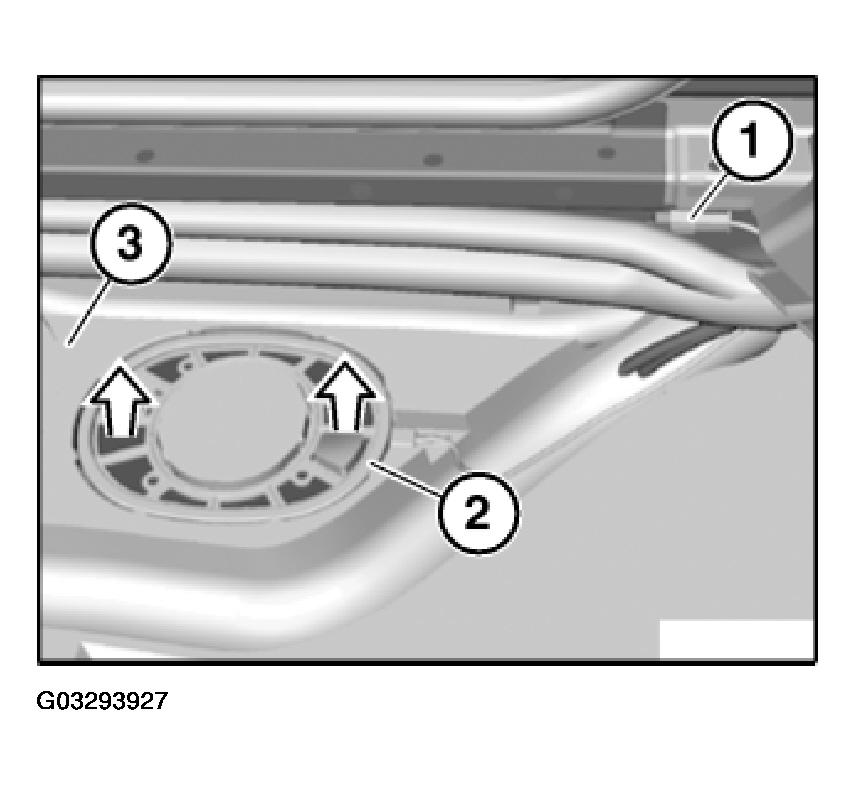

Fig 2: Comfort Access System Interior Antenna, Plug Connection, Floor Trim Panel And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
