11 28 ... Overview Of Belt Drive (N73)

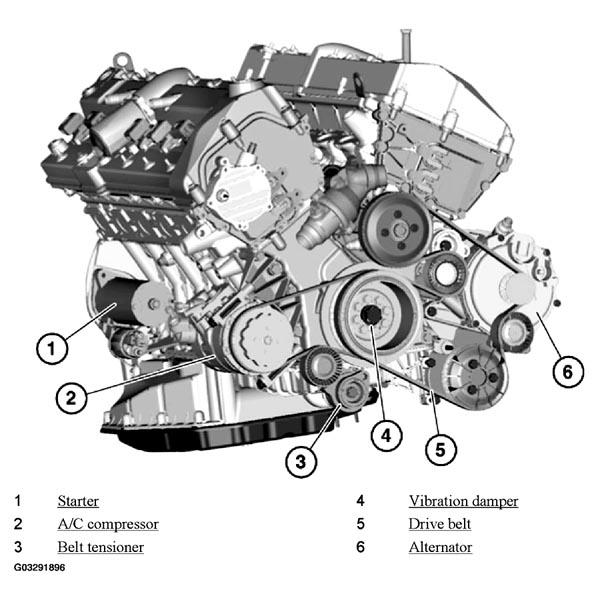

Fig 1: View Of Belt Drive Arrangement (N73)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
