Flow Chart Of Fuel System Monitoring Function

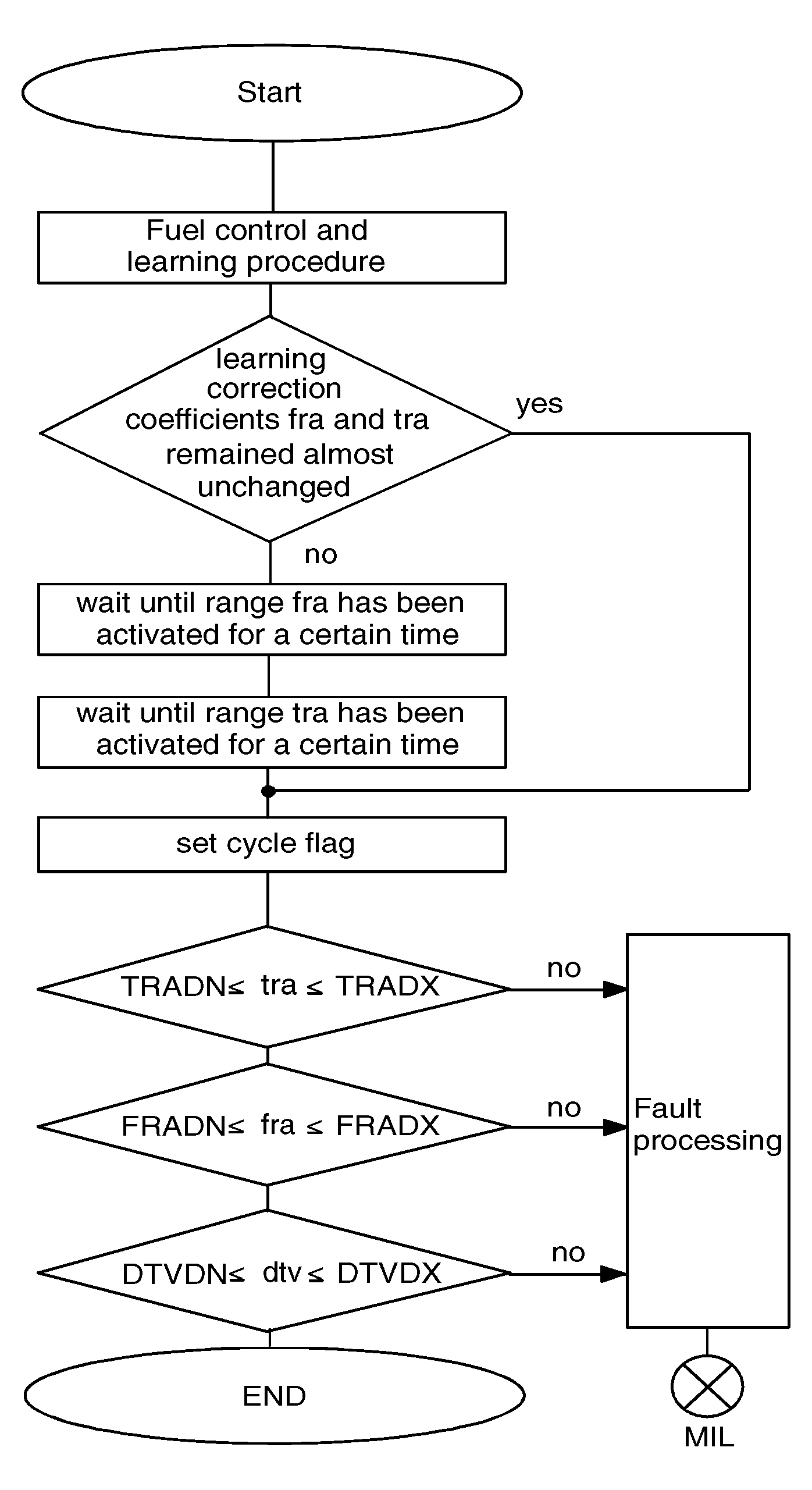

Fig 1: Flow Chart Of Fuel System Monitoring Function
G04562011Courtesy of BMW OF NORTH AMERICA, INC.
