61 13 050 Removing and installing/replacing power distribution box in passenger compartment

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATIONS for handling vehicle battery.

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
Detach both battery cables for negative terminal in F03
Remove RIGHT GLOVE BOX WITH HOUSING

Disconnect plug connection (1) from power distribution box in passenger compartment (3) and junction box electronics.

Unfasten screws (2).

Tightening torque 61 14 1AZ .

Feed out power distribution box in passenger compartment (3) from retaining clips (4) in direction of arrow.

UNLOCK AND DISCONNECT PLUG CONNECTIONS behind.

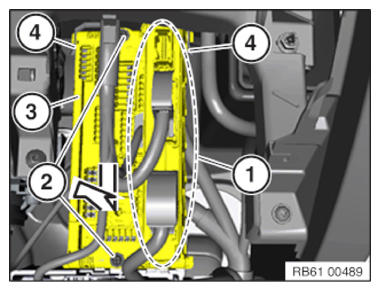

Fig 1: Disconnecting Plug Connection From Power Distribution Box In Passenger Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify JUNCTION BOX ELECTRONICS
Modify fuses
