61 13 250 Removing and installing (replacing) dividing element for integral active steering

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD

Unlock plug connections (1) and disconnect.

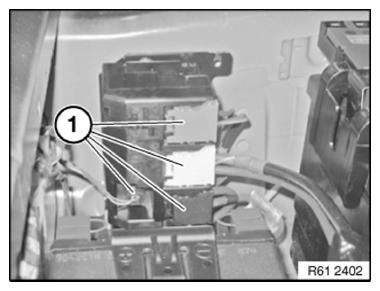

Fig 1: Identifying Plug Connections

G09928639

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 61 21 9AZ .

Lift holder (2) in direction of arrow.

Installation note:

Make sure holders (2) are correctly seated.

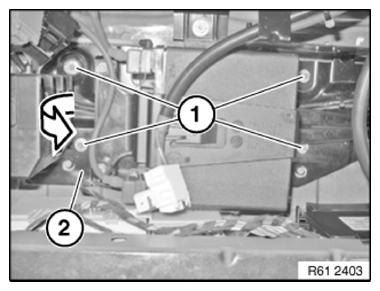

Fig 2: Lifting Holder And Nuts

G09928640

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove dividing element (2) from holder (3).

Installation note:

Make sure dividing element (2) is correctly seated.

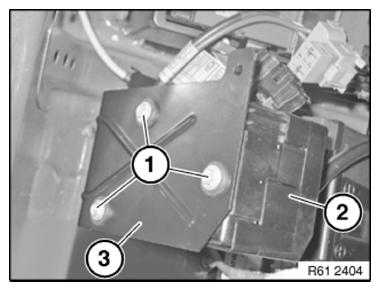

Fig 3: Identifying Dividing Element, Holder And Screws

G09928641

Courtesy of BMW OF NORTH AMERICA, INC.
