61 31 198 Replace controller chrome ring

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Lever out "OPTION", "BACK", "MENU" buttons with special tool 00 9 340 .

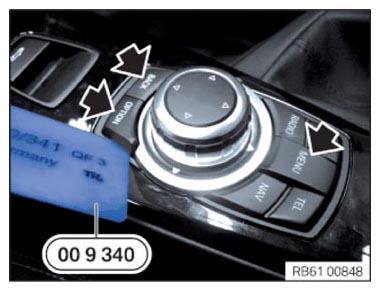

Fig 1: Locating Controller Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out chrome ring (1) from latch mechanisms with special tool 00 9 340 and remove upwards.

Installation note:

Retaining lugs on controller must not be damaged.

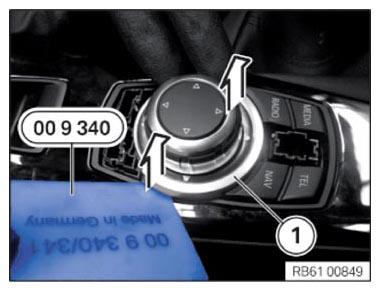

Fig 2: Levering Out Chrome Ring From Latch Mechanisms With Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the controller.
