61 31 539 Replacing operating element for driver assistance system

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OPERATING ELEMENT FOR ASSIST SYSTEM

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

The function keys (2) on the replacement may differ from those on the originally installed operating element (1).

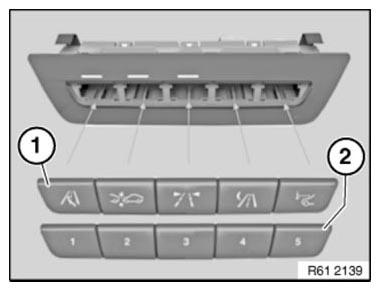

Fig 1: Identifying Driver Assistance System And Function Keys

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows function key (1) for full equipment specification.

Assign function keys (1) according to respective equipment specification.

Blind caps (2) are marked on the back with the corresponding position numbers.

IMPORTANT: The function keys (1) and blind caps (2) must be clipped onto the correct positions otherwise correct operation is not guaranteed and the operating element may be damaged.

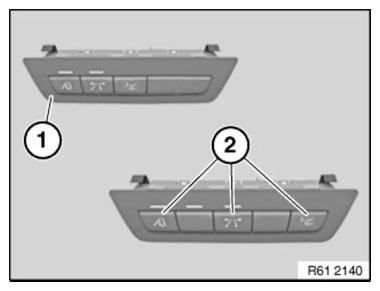

Fig 2: Identifying Function Keys And Blind Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out VEHICLE PROGRAMMING/CODING .
