Fog Lights

The fog lights of the E65 are small ellipsoid lights similar to the E39.

A single screw secures each fog light in position. The snap-fit horizontal grille insert has to be removed in order to gain access to this screw. The screw for vertical adjustment is freely accessible. The fog light has to be removed in order for the bulb to be replaced.

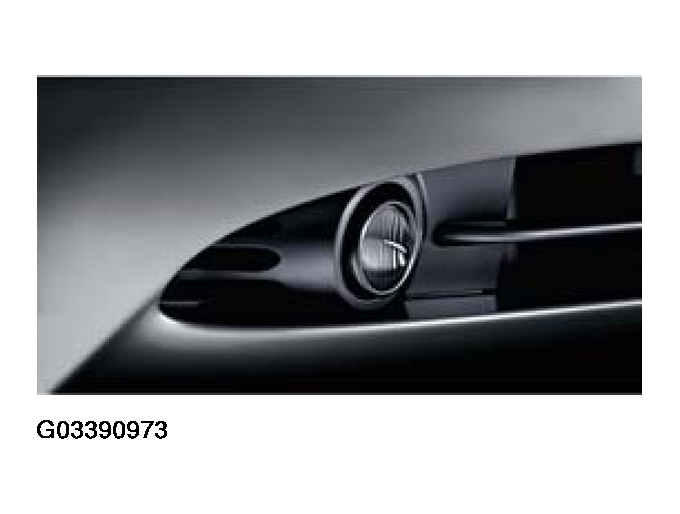

Fig 1: Identifying Fog Lights

Courtesy of BMW OF NORTH AMERICA, INC.

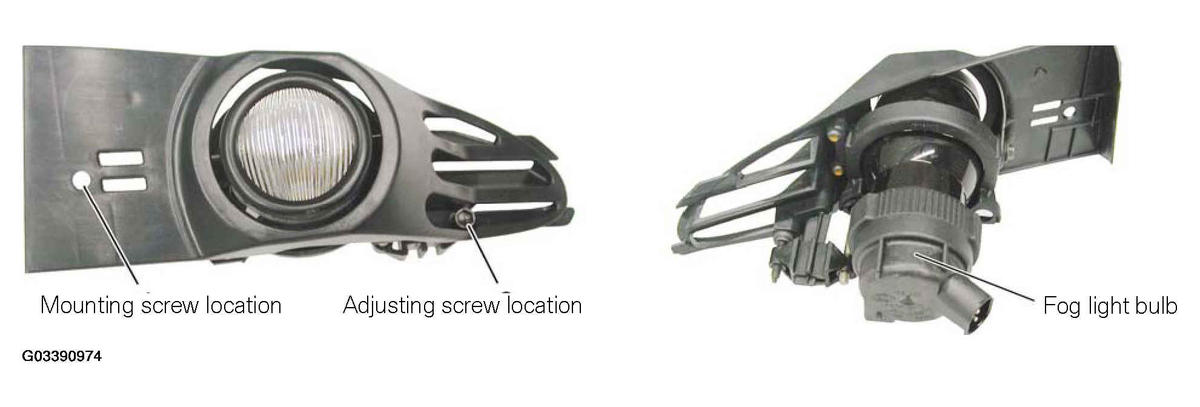

Fig 2: Identifying Fog Light Components

Courtesy of BMW OF NORTH AMERICA, INC.
