Front Interior Light Roof Console

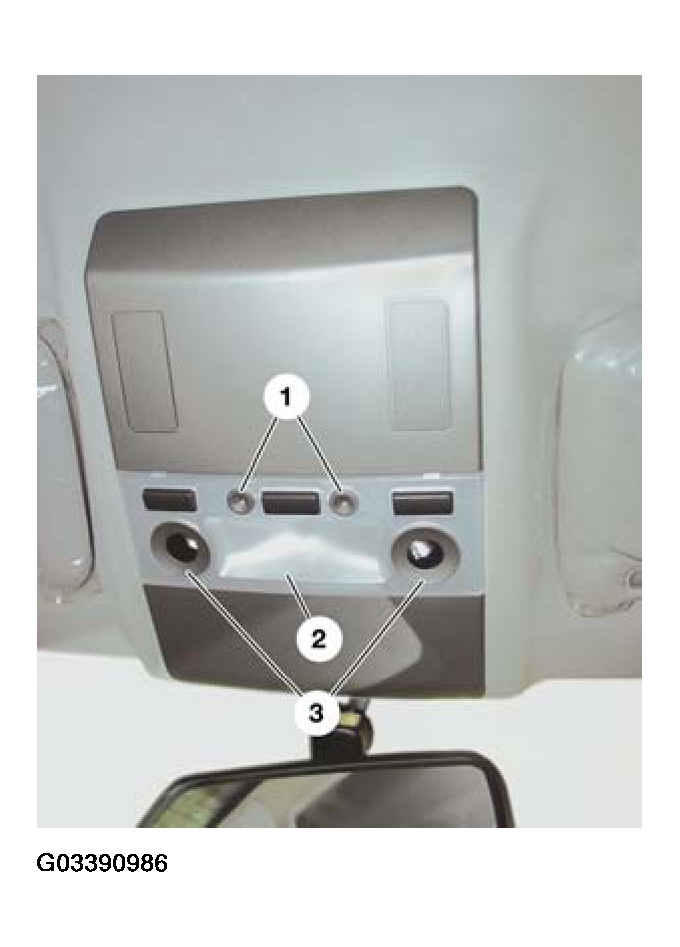

The interior light (2), two separately controlled reading lights on the right and left (3) as well as two LEDs for ambient lighting (1) are contained in the front light unit.
The interior light is controlled by the IB circuit and the reading lights are part of the VA-D circuit of the Power Module.
The contact for turning on and off the interior light is a momentary contact to the Power Module. The operation is the same as previous models including the "workshop mode" (hold for longer than 3 s, lights remain off).
The ambient lighting LEDs are supplied power by the KL-58g circuit of the Light Module.
