2220057 Adapter cable

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

2220057 Adapter cable Minimum set: Measuring and testing equipment MP

NOTE: 6-pin adapter cable for diagnostic work on tank sensor from L7. Also replaces adapter cable 61 4 030 = 0496474. [Released]

Storage Location: R202

SI number: 02 03 11 (708)

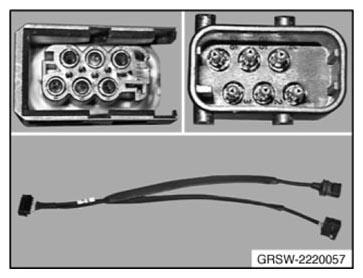

Fig 1: Identifying Adapter Cable (2220057)
G08465561Courtesy of BMW OF NORTH AMERICA, INC.
