31 60... Notes on removing and installing Low Profile band clamps

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 200

IMPORTANT: During removal Low Profile band clamp (dotted line) is overstretched and must not be reused!

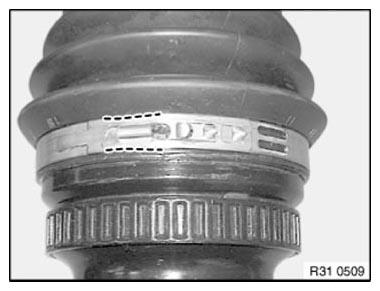

Fig 1: Identifying Low Profile Band Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Removing:

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

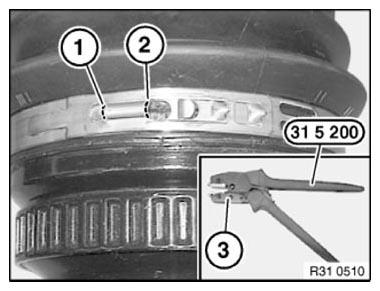

Fig 2: Identifying Special Tool (31 5 200) On Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Compress Low Profile band clamp with special tool 31 5 200 until end of band clamp (1) lifts up.

Relieve tension on special tool and remove Low Profile band clamp.

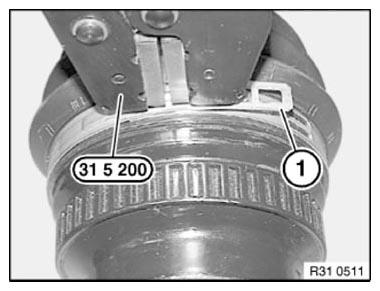

Fig 3: Compressing Low Profile Band Clamp With Special Tool (31 5 200)

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly:

Position Low Profile band clamp in installation position (A) on gaiter.

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

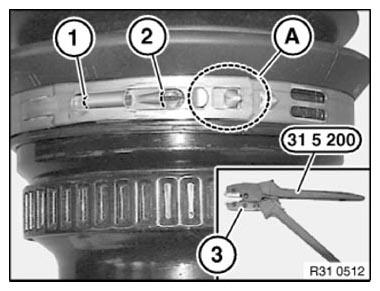

Fig 4: Identifying Low Profile Band Clamp Installation Position On Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of gaiter and Low Profile band clamp.

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

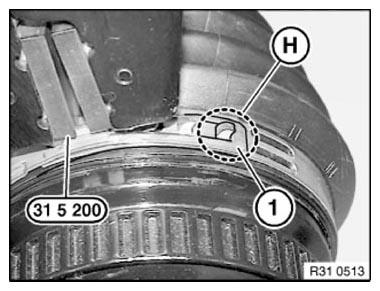

Fig 5: Compressing Low Profile Band Clamp With Special Tool (31 5 200)

Courtesy of BMW OF NORTH AMERICA, INC.
