27 00... Replenishing/Changing Transfer Case Oil (ATC 350)

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2016 BMW 550i xDrive, 2016 BMW 535i xDrive, 2016 BMW 535d xDrive, 2016 BMW 528i xDrive, and 2015 BMW 550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Use only the approved transmission oil in the transfer box .
Failure to comply with this requirement will result in serious damage to the transfer box!

NOTE: Only change oil when transfer box is at normal operating temperature.

Necessary preliminary tasks:

Remove transmission cross-member . See 22 32 050 REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING (N57) AWD , 22 32 050 REPLACING THE CROSS MEMBER FOR THE TRANSMISSION MOUNTING (N20, N55, N47) ALL-WHEEL DRIVE VEHICLE or 22 32 050 REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING (N63) AWD .

Checking/correcting transfer case oil level:

Undo oil filler plug (1).

Check transfer box oil level.

If necessary, pour in transmission oil up to lower edge of opening for oil filler plug (1).

Installation note:

Tightening torque: 27 10 2AZ .

Replace oil filler plug (1).

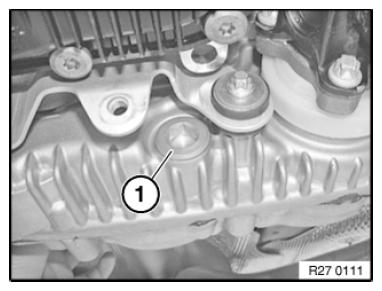

Fig 1: Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Changing transfer box oil:

Remove exhaust system holder from transmission.

Tightening torque: 18 20 1AZ (N63) , 18 20 1AZ (N57) , 18 20 1AZ (N20) or 18 20 1AZ (N55) .

Place oil collecting apparatus underneath.

Remove oil drain plug (1).

Drain and dispose of transmission oil.

NOTE: Observe country-specific waste disposal regulations.

Fig 2: Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace oil drain plug (1).

Tightening torque: 27 10 2AZ .

Undo oil filler plug (1).

Pour in transmission oil up to lower edge of opening for oil filler plug (1).

Tightening torque: 27 10 2AZ .

Replace oil filler plug (1).

Fig 3: Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.
