64 11 970 Replacing fogging sensor

Special tools required:

NOTE: For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63) .

Necessary preliminary tasks:

WARNING: Make sure rooms are well ventilated when working with adhesive remover indoors.

IMPORTANT: Do not under any circumstances use paint thinner to clean the bonding surface.

Unfasten plug connection (1) and disconnect.

NOTE: If necessary, carefully heat fogging sensor (2) with a hot air blower to approx. 40-60°C.

Lift off fogging sensor (2) with special tool 00 9 317 and slowly pull off from windshield.

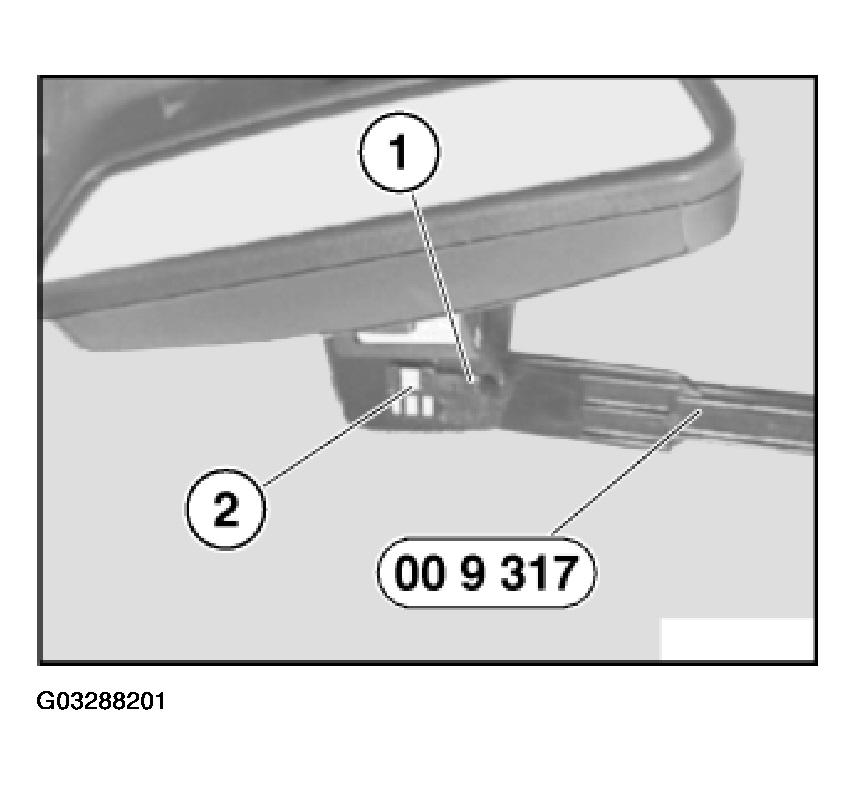

Fig 1: Disconnecting Plug Connection And Lifting Off Fogging Sensor (2) With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bonding surface must be dry and free of dust and grease.

Clean bonding surface with adhesive remover.

After cleaning, do not touch bonding surface with bare hands.

Pull off protective film completely from fogging sensor (3).

Place mounting template (1) as pictured on rain sensor (2).

Press fogging sensor (3) in direction of arrow with a contact pressure of less than or equal to 15 N/cm2 onto inside of windshield.

NOTE: Firm thumb pressure attains approx. 30 N/cm² .

Remove mounting template (1) carefully from fogging sensor (3).

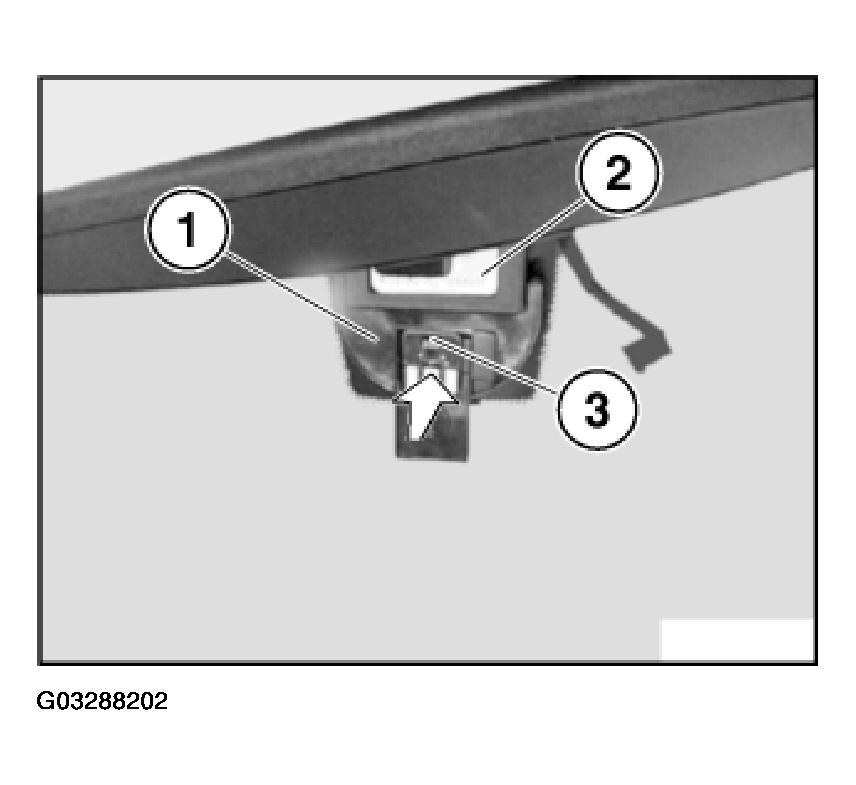

Fig 2: Removing Mounting Template From Fogging Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
