61 13... Crimping Micro Quadlock System contacts (MQS)

Special tools required:

To crimp MQS contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320.

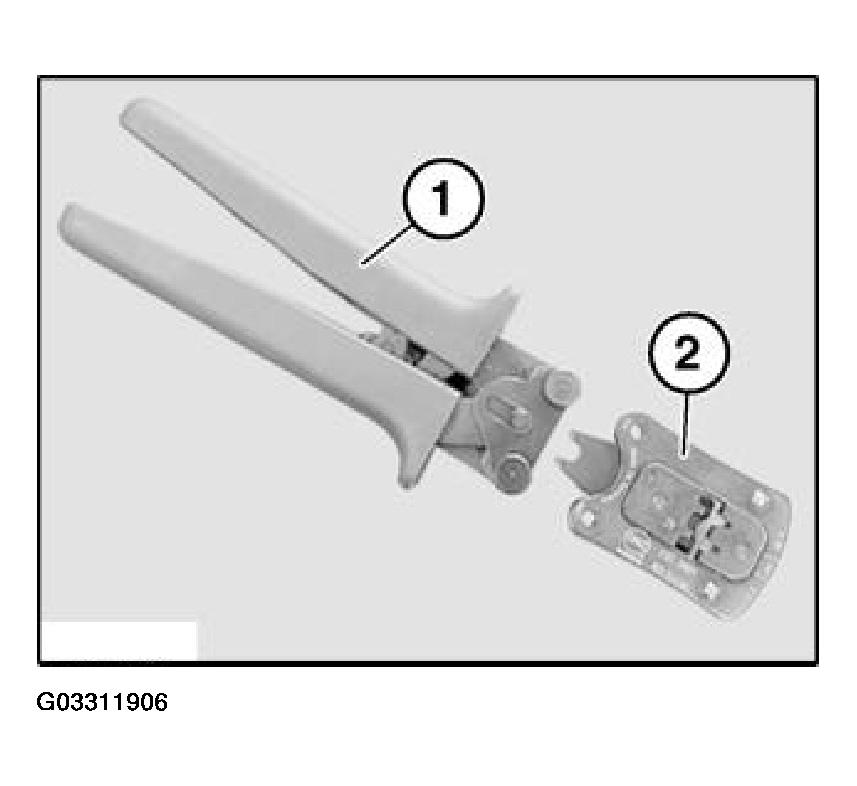

Fig 1: Identifying Pliers With Crimping Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

Open pliers (1).

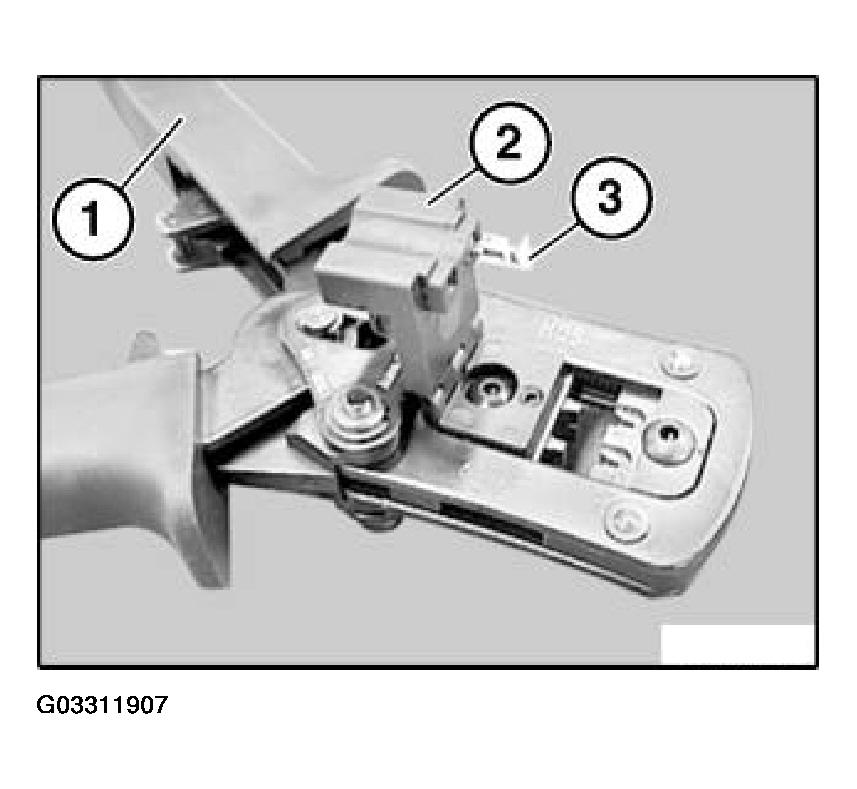

Fig 2: Assembling Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up contact carrier (2).

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

NOTE: Follow procedure for cutting and stripping insulation from cables.

Close pliers (1) one notch.

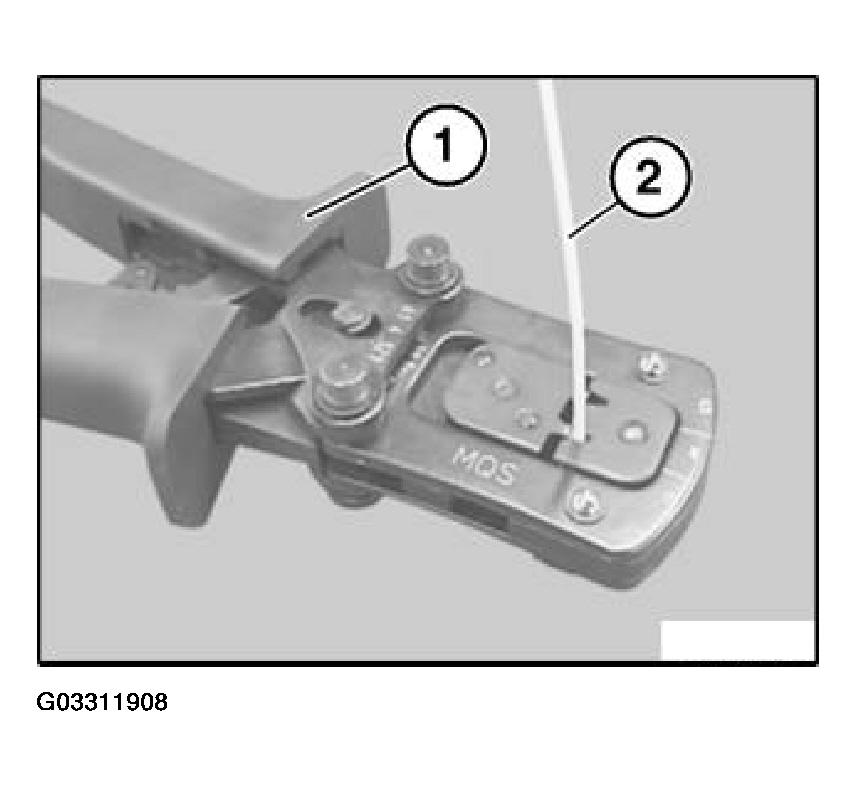

Fig 3: Inserting Stripped Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Insert stripped cable (2).

Close pliers (1) fully.

Open pliers (1).

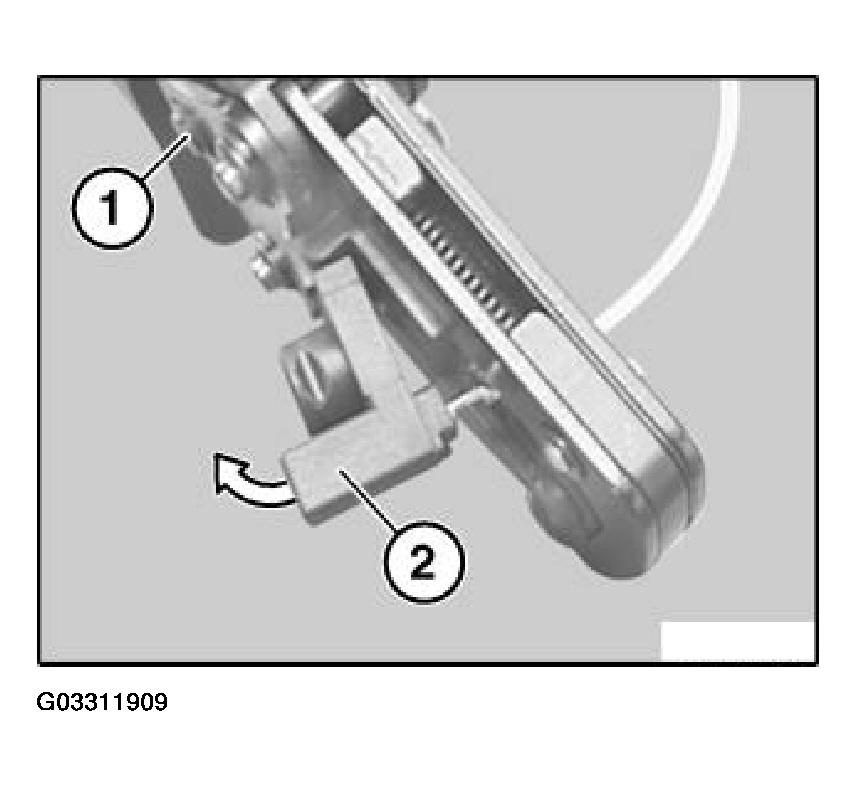

Fig 4: Removing MQS Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Open contact carrier (2) gently and carefully remove MQS contact.

NOTE: Check contact for correct crimping.
