Mode 6

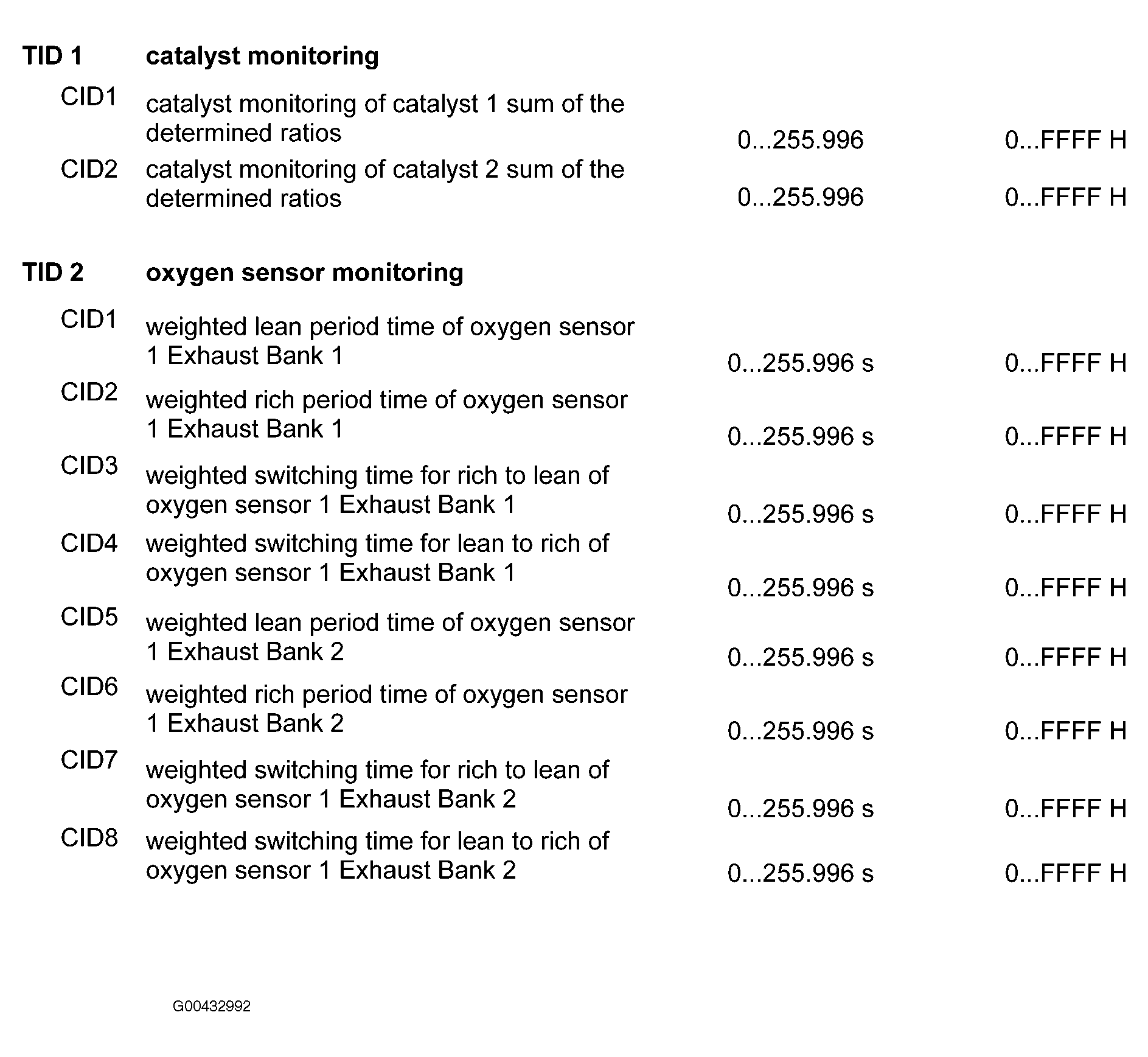

Fig 1: Mode 6 Data (1 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

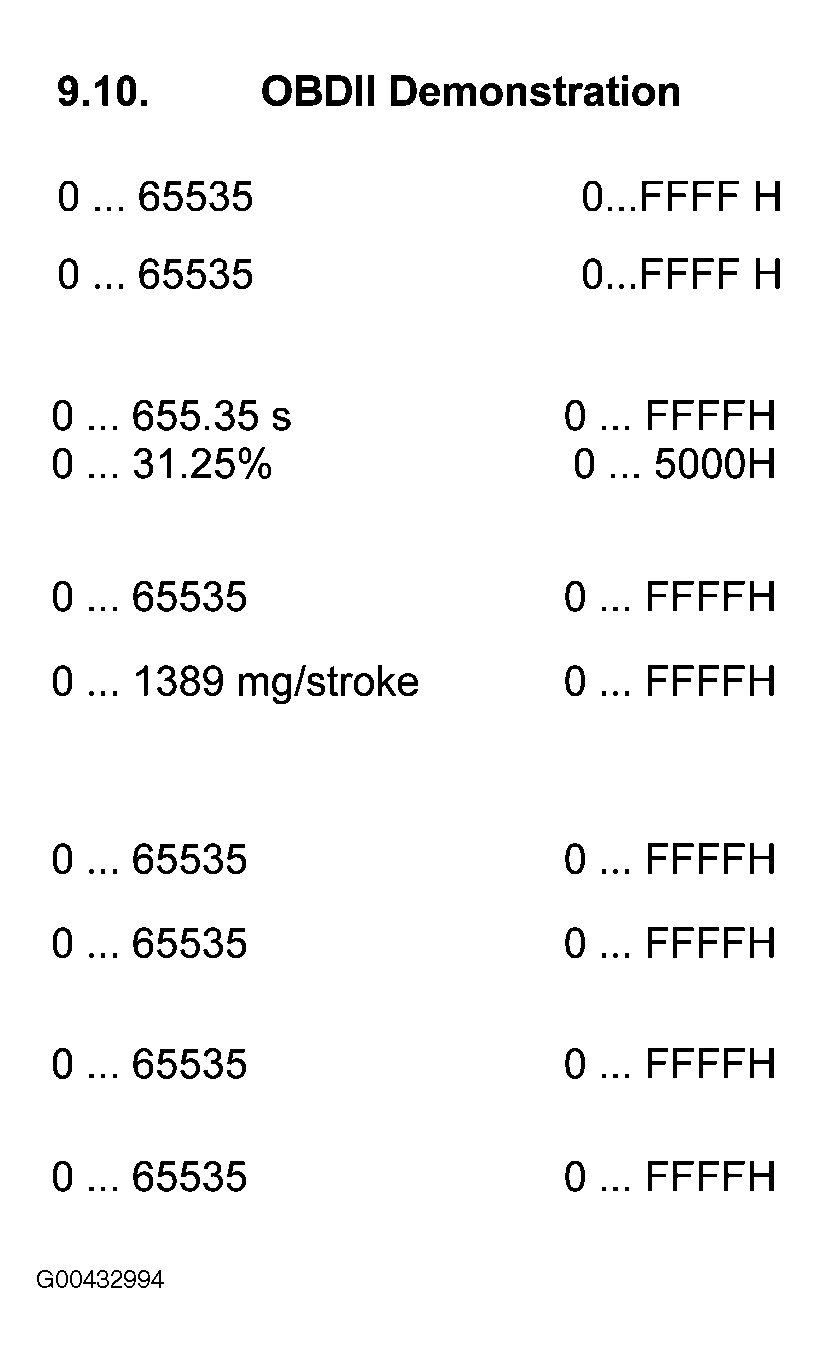

Fig 2: Mode 6 Data (2 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

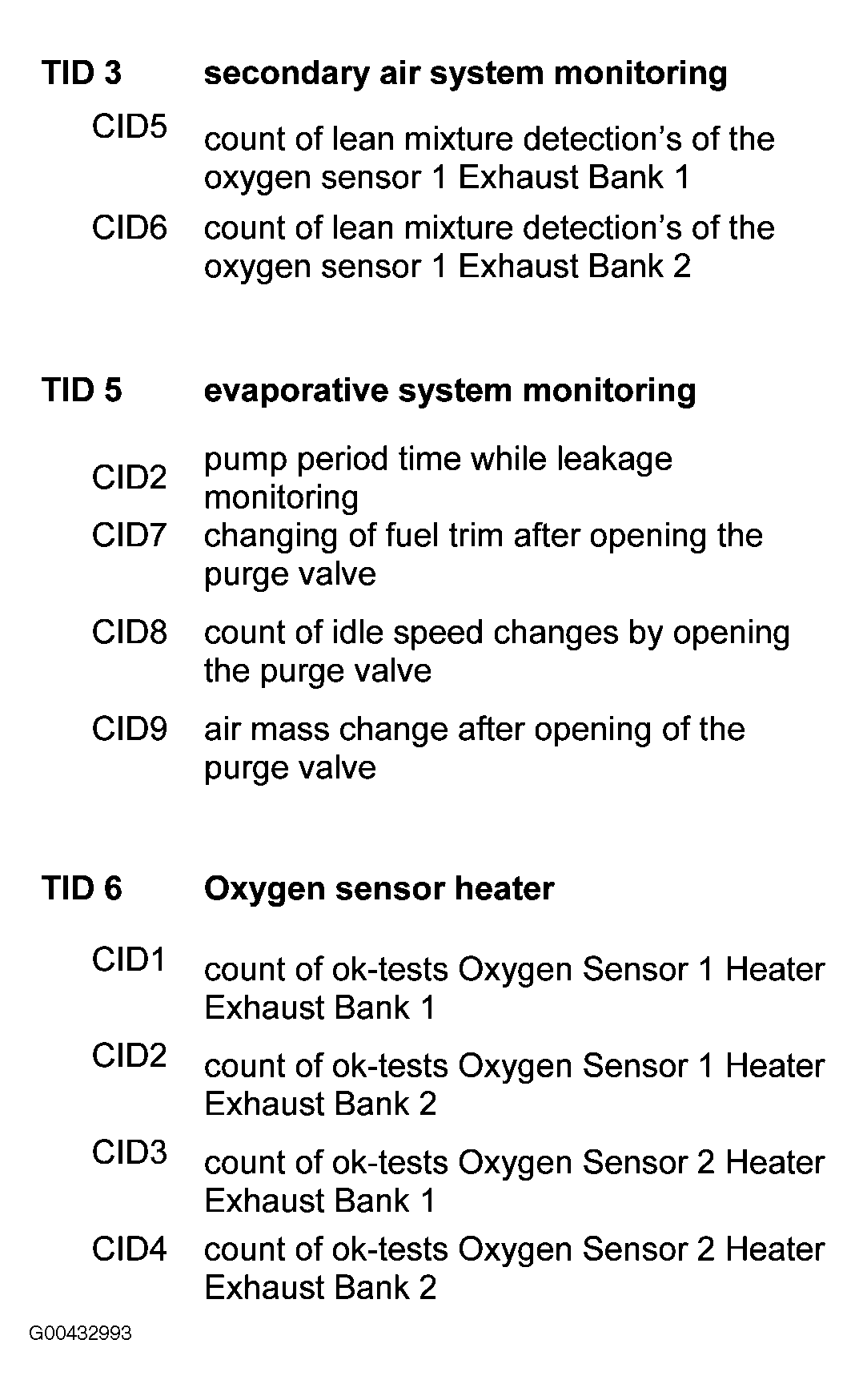

Fig 3: Mode 6 Data (3 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
