SMG Control Module

The SMG Control Module is located in the electronics box at the front left in the engine compartment. It is positioned next to the ECM, in place of the EGS Control Module.

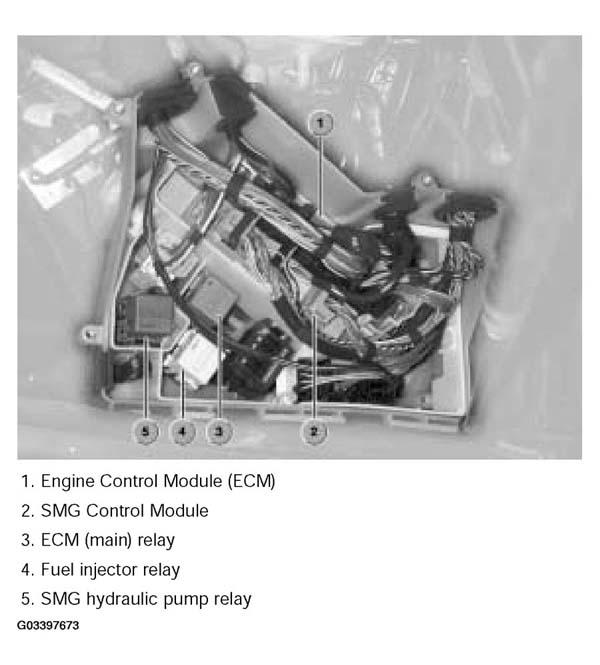

Fig 1: Identifying Electronics Box Components

Courtesy of BMW OF NORTH AMERICA, INC.
