61 13 ... Repairing ribbon cables

Special tools required:

• 61 1 190

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Identifying Ribbon Cables, Connector Housing And Close Cover

Courtesy of BMW OF NORTH AMERICA, INC.

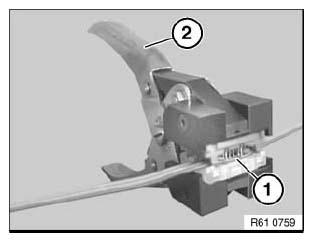

Place connector housing (1) in tool (2) 61 1 190.

Close tool (2).

Fig 2: Identifying Special Tool (61 1 190) And Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.
