61 35 ... Overview of control units

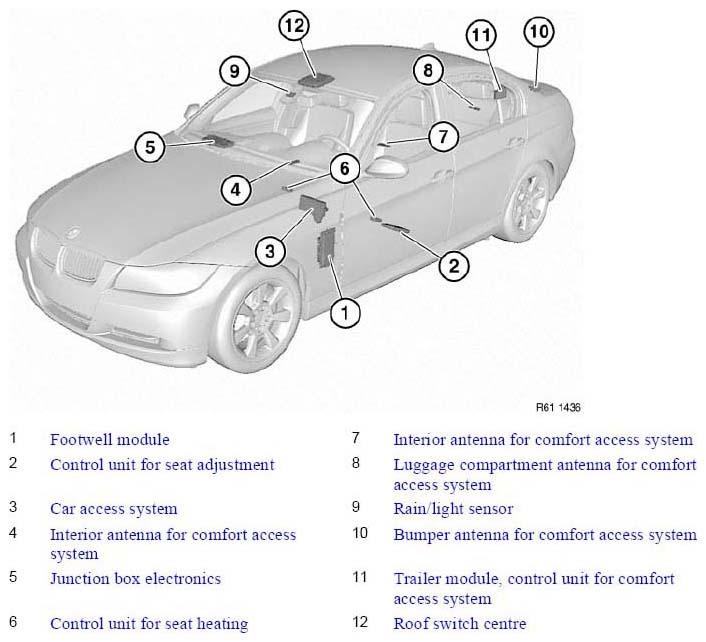

Fig 1: Identifying Control Units Components And Component Location
G04727626Courtesy of BMW OF NORTH AMERICA, INC.
