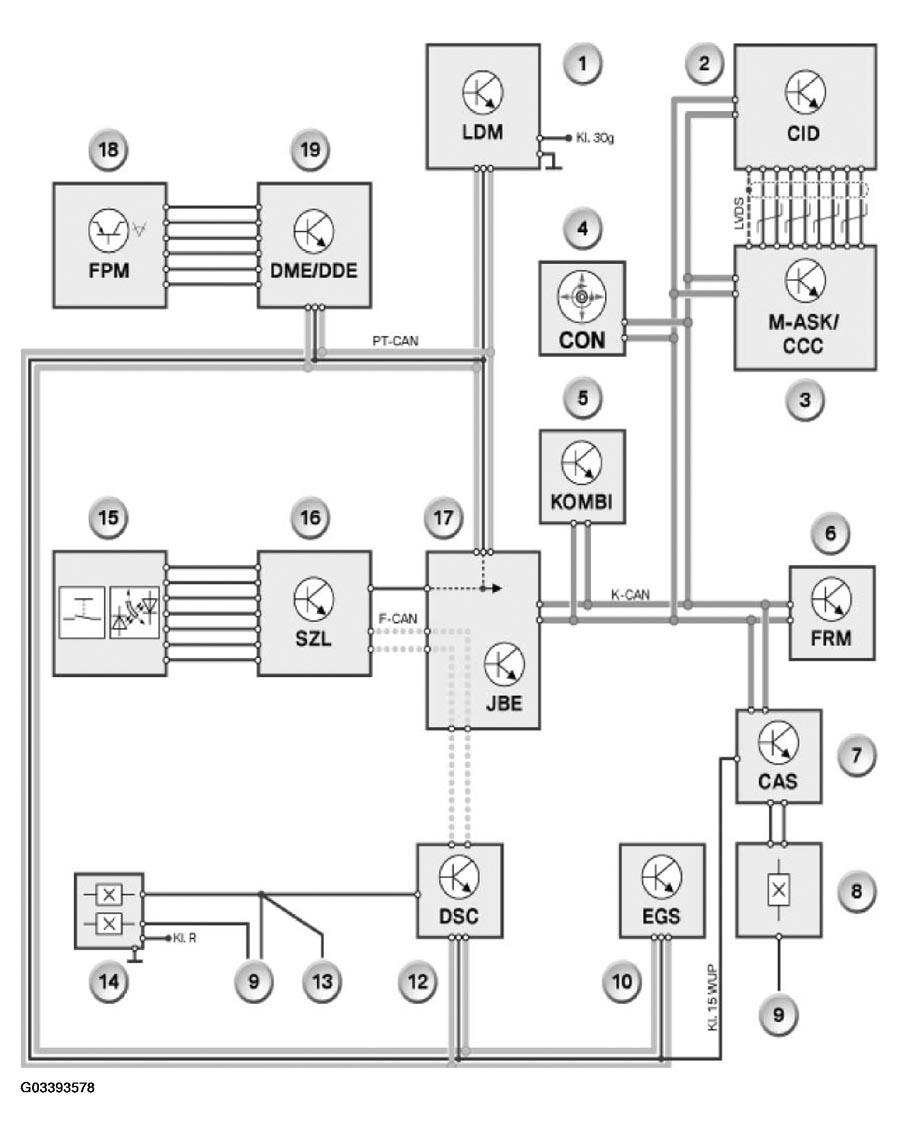

Components Involved with DCC Function: Notes
LEGEND FOR COMPONENTS INVOLVED WITH DCC FUNCTION
| Index | Explanation | Index | Explanation |
|---|---|---|---|
| 1 | Longitudinal Dynamics Module (LDM) | 14 | Brake Light Switch |
| 2 | Central Information Display (CID) | 15 | Cruise Control functions on SZL |
| 3 | Car Communication Computer (CCC) | 16 | Steering Column Stalk (SZL) |
| 4 | Controller (CON) | 17 | Junction Box Electronics (JBE) |
| 5 | Instrument Cluster | 18 | Accelerator Pedal Module (FPM) |
| 6 | Footwell Module (FRM) | 19 | Digital Engine Electronics (DME/ECM) |
| 7 | Car Access System(CAS) | Kl. 15 WUP | Activation wire from CAS (Terminal 15 wake-up) |
| 8 | Clutch Module | KL.30g | Terminal 30g active |
| 9 | To Digital Engine Electronics (DME/ECM) | F-CAN | Chassis CAN |
| 10 | Electronic Transmission Control (EGS) | K-CAN | Body CAN |
| 11 | N/A | LVDS | LVDS (Low Voltage Differential Signalling) data line |
| 12 | Dynamic Stability Control (DSC) | PTCAN | Powertrain CAN |
| 13 | To Footwell Module (FRM) |
