Under Body View 1

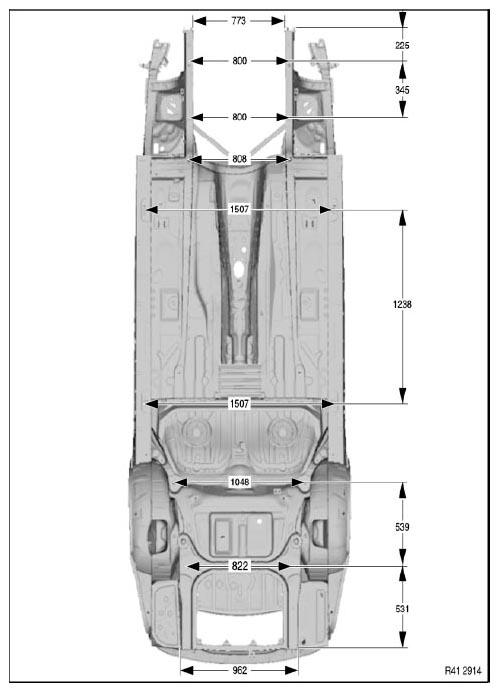

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)
G04752142Courtesy of BMW OF NORTH AMERICA, INC.
