Wiper/Washer System - Input/Output

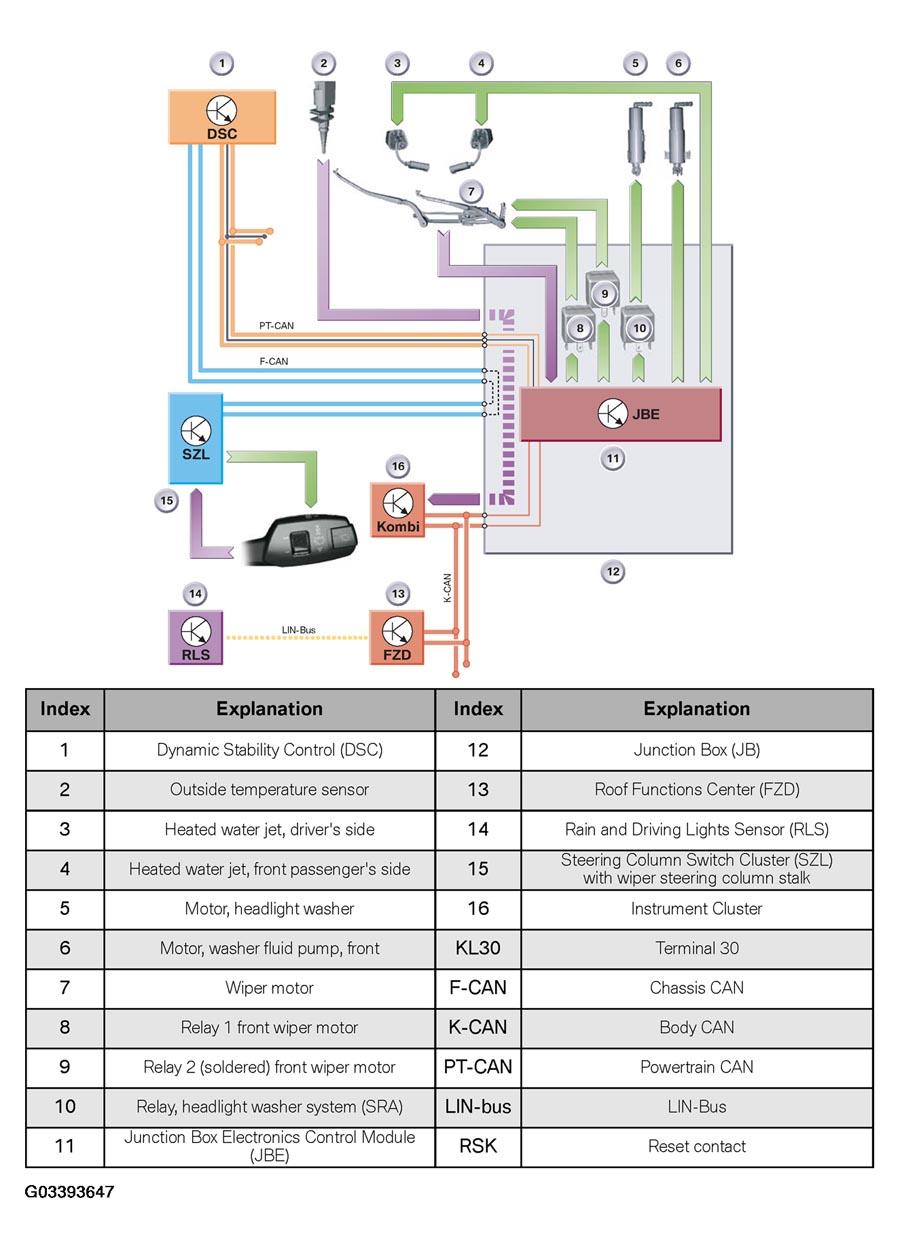

Fig 1: Wiper/Washer System - Input/Output Signal
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
