CBS Display - Central Information Display
All information on the individual service operations can be displayed in the CID.
To access the CBS date press the controller, the "Settings" menu will appear.
Turn the controller until "Service" is highlighted, then press to activate the CBS menu.

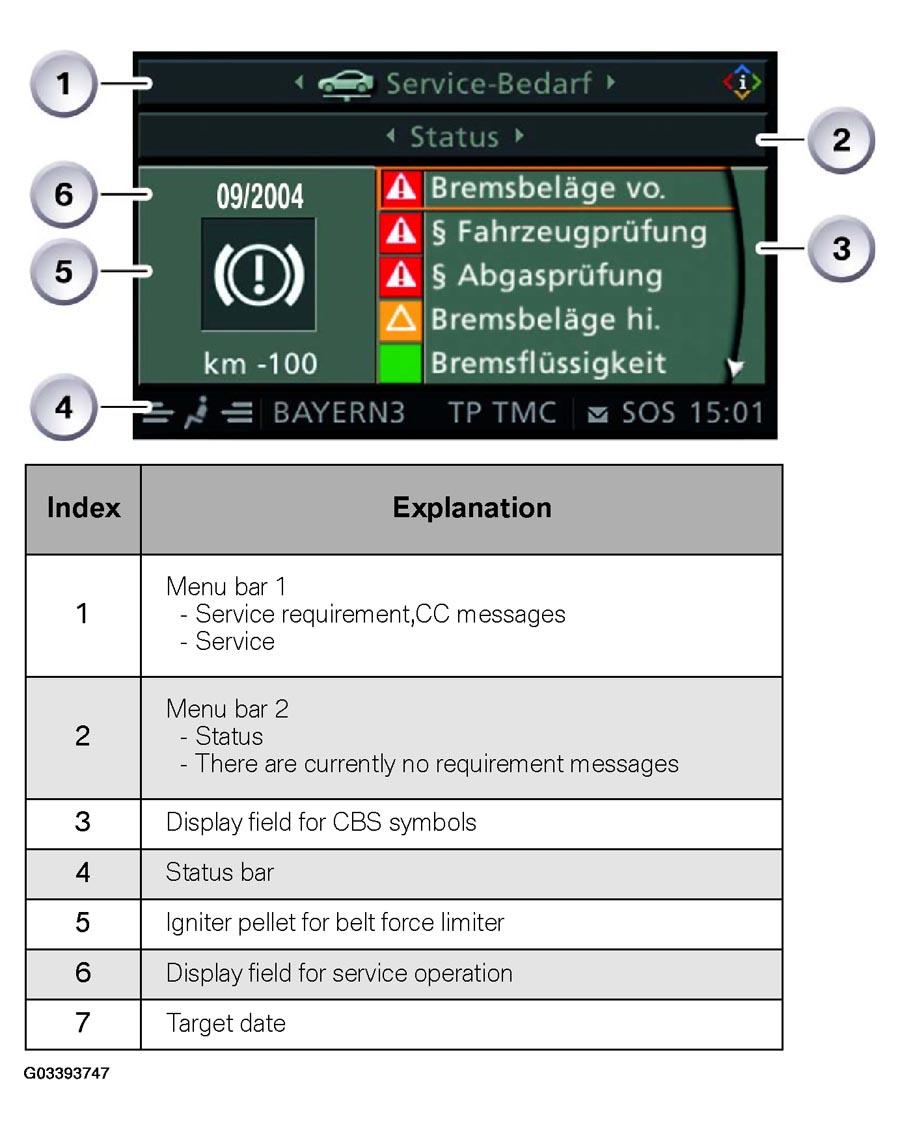

The following operating and display fields are shown:
- Status bar
- Menu bar 1
- Menu bar 2
- Display field for CBS symbol
- Display field for service operation.
The service operation display field always shows the first five messages.
Any overdue service operations and symbols marked in red in the list are always at the top of the list of messages.
To display the information concerning a specific service operation on the CID, turn the controller to select the required service operation and display the selection by pressing the controller.

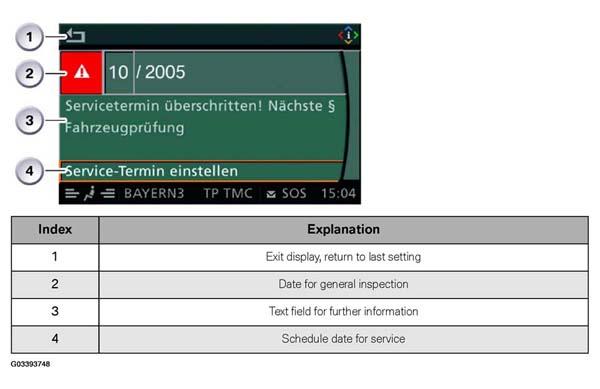

The following display appears in the CID if, for example, the service operation "Vehicle inspection" is selected and activated:
Once the service date has been set and confirmed by pressing the controller, the priority of the service operation changes, e.g. from red to green and the service operation is sorted in the list.
