DME Control Module X60004 Connector End View

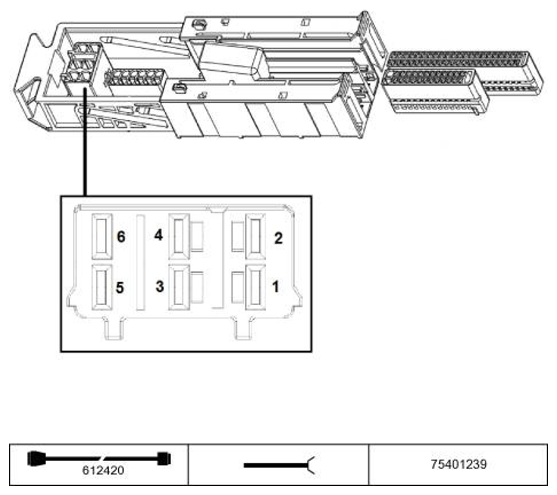

Fig 1: DME Control Module X60004 Connector End View
G11217869Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector X60004

Pin Type Description /Signal type Connection /Measuring notes
1 A Activation Ignition coil, cylinder 1
2 A Activation Ignition coil, cylinder 2
3 A Activation Ignition coil, cylinder 3
4 A Activation Ignition coil, cylinder 4
5 A Activation Ignition coil, cylinder 5
6 A Activation Ignition coil, cylinder 6
