Remote Control

Each vehicle is delivered with one spare key and two remote control units. The adapter for the spare key is located in the glove compartment.

NOTE: A third remote control for the vehicle is optionally available. This remote control can be ordered through Spare Parts.

The remote control has three buttons for operating the central locking system.

There is a rechargeable battery in the remote control that is charged by means of a transponder coil in the remote control holder.

The mechanical key is integrated in the remote control.

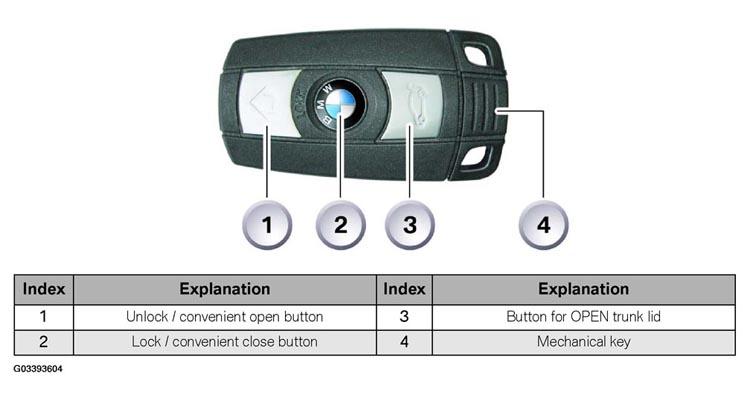

Fig 1: Identifying Remote Control Button
G03393604Courtesy of BMW OF NORTH AMERICA, INC.

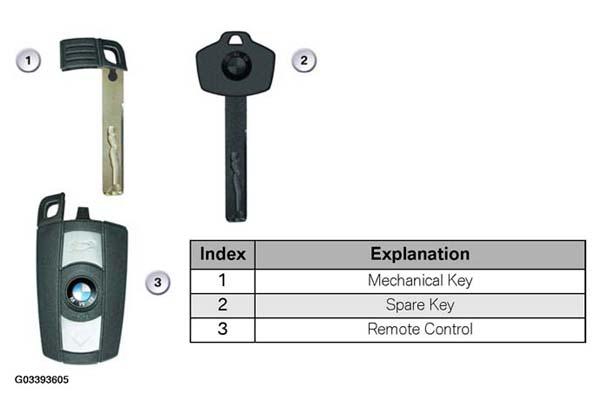

Fig 2: Identifying Keys
G03393605Courtesy of BMW OF NORTH AMERICA, INC.
