System Circuit Diagram

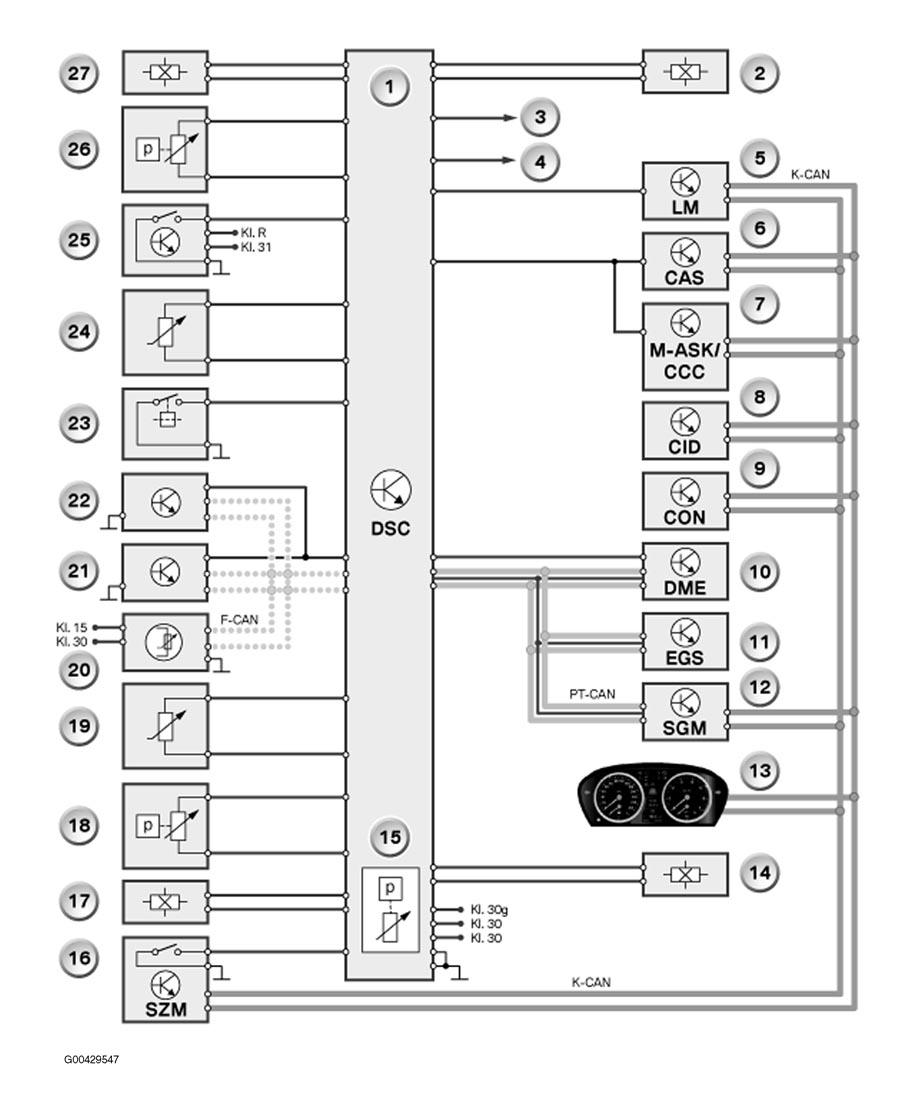

Fig 1: DSC System Circuit Diagram
Courtesy of BMW OF NORTH AMERICA, INC.

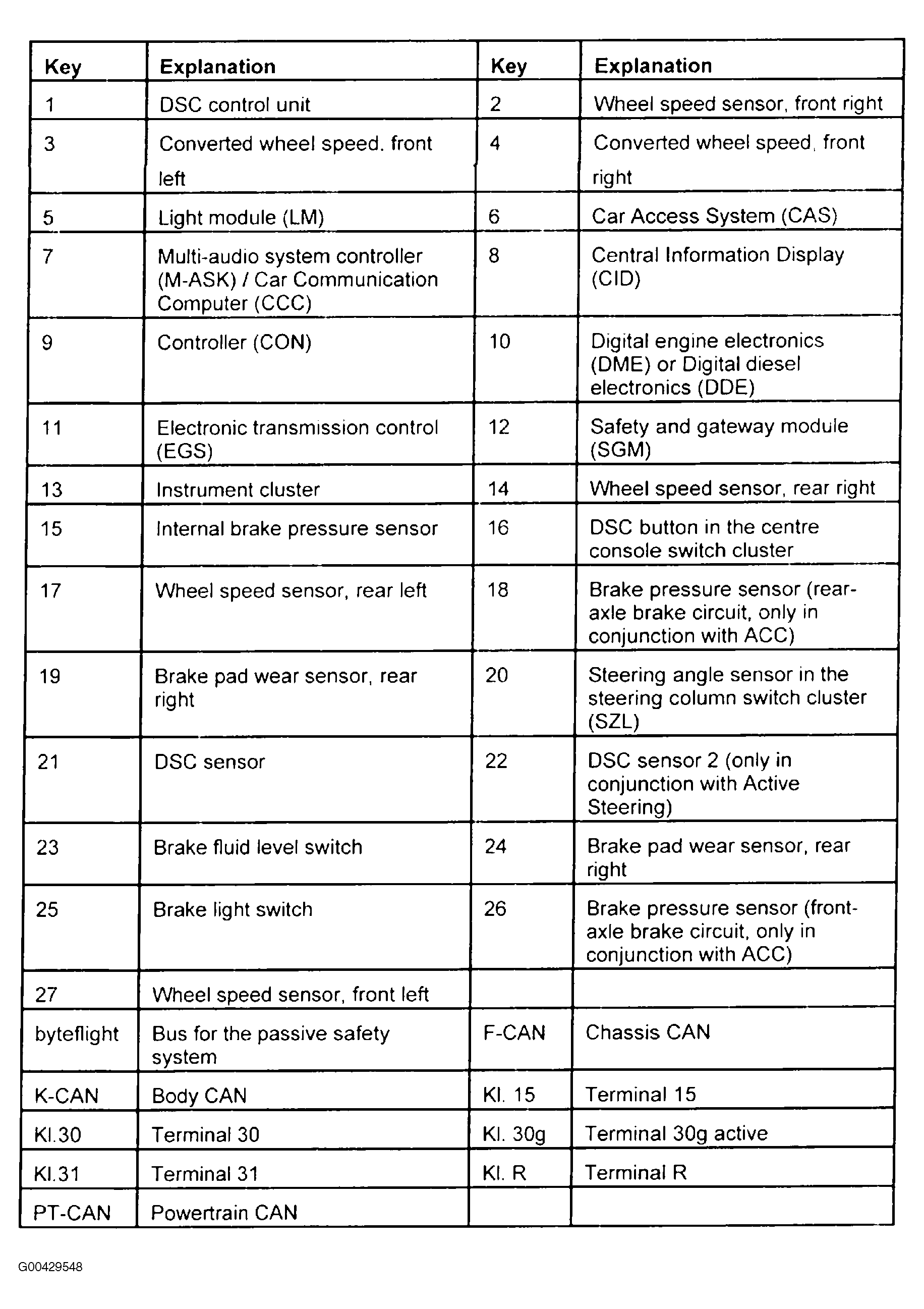

Fig 2: DSC System Circuit Diagram Legend
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
