Rear Shocks With Load Dependent Module (LAD)

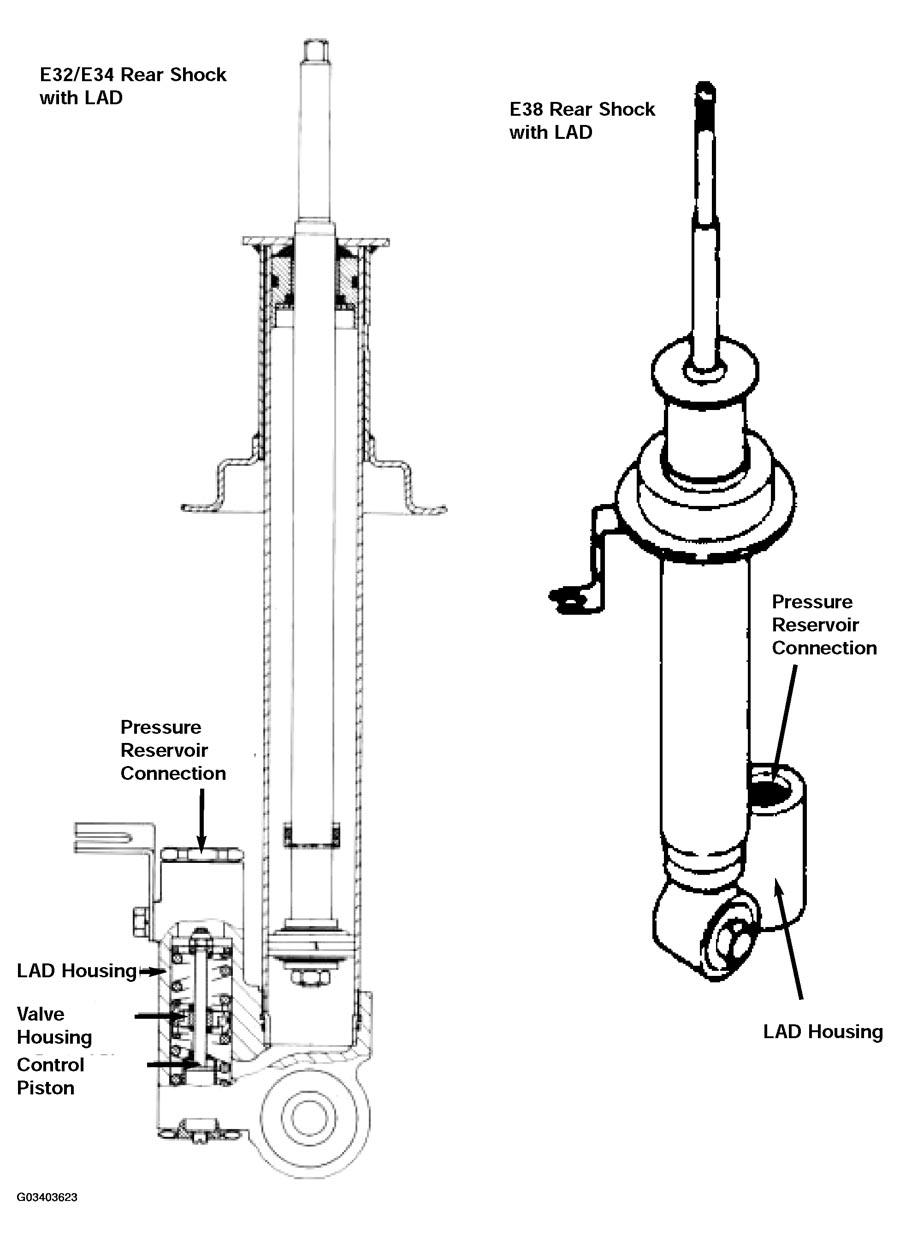

Fig 1: Identifying Rear Shocks With Load Dependent Module (LAD)
G03403623Courtesy of BMW OF NORTH AMERICA, INC.
