61 1 410 Set Of DIS Test Prods

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E39tou, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, RR1

Storage location: H 107

Order number: 61 1 410

Set of DIS test prods

Consisting of:

1 = 61 1 411 Clip SAGK4-K, red

1 = 61 1 421 Clamping test probe XB/100, black

2 = 61 1 412 Clip SAGK4-K, black

3 = 61 1 413 Clip SAGK4, red

4 = 61 1 414 Clip SAGK4, black

5 = 61 1 415 Clip XDK-1033, red

6 = 61 1 416 Clip XDK-1033, black

7 = 61 1 417 Test probe SPP4-S, red

8 = 61 1 418 Test probe SPP4-S, black

9 = 61 1 419 Clamping test probe XB/100, red

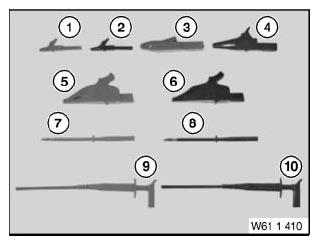

Fig 1: Set Of DIS Test Prods (61 1 410)

Courtesy of BMW OF NORTH AMERICA, INC.
