41 00... Use Of Materials In Outer Shell

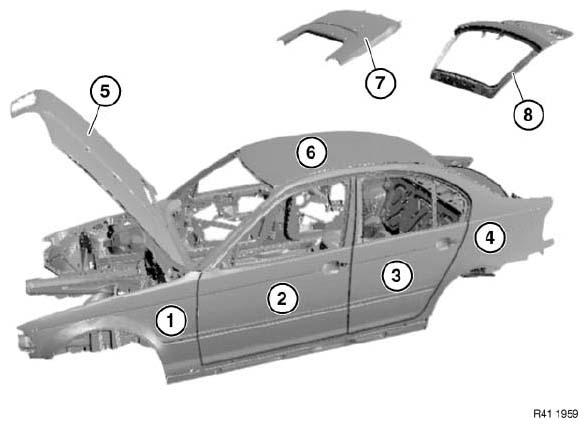

The following illustration is a schematic representation of all the body variants.
Apply this illustration to the relevant vehicle.
All components not listed in the table below are composed of established sheet steel qualities.
COMPONENTS MATERIALS CHART
| Component | Vehicle | Material |
|---|---|---|
| (1) Side panel, front | E52 (Z8) | Aluminum |
| E60, E61 | Aluminum | |
| E63, E64 | Plastic (thermoplastic) | |
| E65, E66: | Aluminum | |
| E70, E92, E93 | Plastic (thermoplastic) | |
| (2) Front door | E36/C (M3) | Aluminum or steel |
| E36/2 (M3) | Aluminum or steel | |
| E52 (Z8) | Aluminum | |
| E63, E64 | Aluminum | |
| (4) Side panel, rear | E52 (Z8) | Aluminum |
| (5) Engine hood | E38 (750i) | Aluminum or steel |
| E46/C (M3) | Aluminum | |
| E46/2 (M3) | Aluminum | |
| E52 (Z8) | Aluminum | |
| E60, E61, E63, E64 | Aluminum | |
| E65, E66, E70 | Aluminum | |
| E85 (Z4) | Aluminum | |
| (6) Hardtop/ roof | E36/C | Aluminum |
| E36/7 (Z3) | Plastic (glass fibre / epoxy resin) | |
| E46/C | Aluminum | |
| E46/2 (M3 CSL) | Plastic (CFK) | |
| E52 (Z8) | Plastic (PU) | |
| E85 (Z4) | Plastic (SMC) | |
| E63 (M6) | Plastic (CFK) | |
| (7) Soft top lid | E46/C | Magnesium |
| E64 | Plastic (SMC) | |
| (8) Rear lid | E46/2 (M3 CSL) | Plastic (SMC) |
| E52 (Z8) | Aluminum | |
| E63, E64 | Plastic (SMC) |
