61 31 287 Removing and installing/replacing driving dynamics switch

Necessary preliminary tasks:

• Remove trim for preselector lever (shift lever). See 51 16 210 REMOVING AND INSTALLING/REPLACING TRIM FOR PRESELECTOR LEVER .

Press driving dynamics switch (1) in direction of arrow out of center console (2).

Disconnect plug connection (3) and remove driving dynamics switch (1).

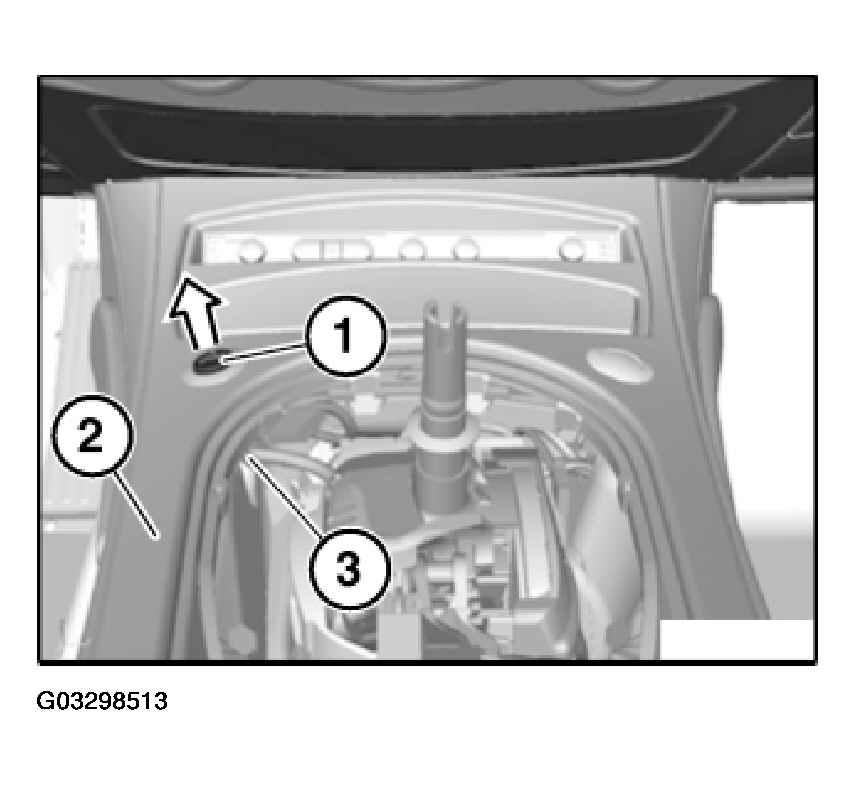

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
