61 13... Opening plug housings and removing contacts of different plug systems
Abbreviations And What They Mean:
ABBREVIATIONS
| MDK 3plus | Miniature double flat spring contact |
| JPT ELA | Junior Power Timer flat spring contacts with strand sealing |
| DFK ELA | Double flat spring contacts with strand sealing |
| Elo | Electronic contacts with and without strand sealing Manufacturer: Siemens |
| Elo Power | Electronic contacts for heavy loads with and without strand sealing Manufacturer: Siemens |
| MQS | Micro Quadlock System electronic contacts with and without strand sealing Manufacturer: AMP |
| MPQ | Micro Power Quadlock electronic contacts for heavy loads with and without strand sealing Manufacturer: AMP |
| D 1.5 / 2.5 | Round contacts of 1.5 mm or 2.5 mm diameter |
Ultrasonic-welded connectors:

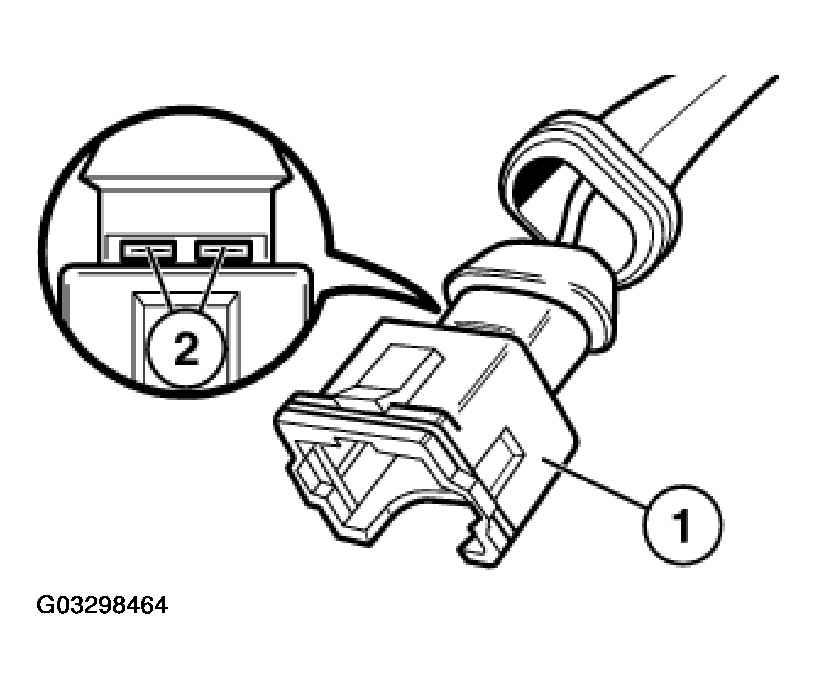

Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
The contacts of these connectors cannot be replaced. Replace plug completely.
NOTE:
Special tools referred to in the repair instructions below are contained in the following special tool kits:
Release and press-out tool 61 1 150
