61 13... Plug housing, LCC contact (load current contact)

Special Tools Required:

Socket housing:

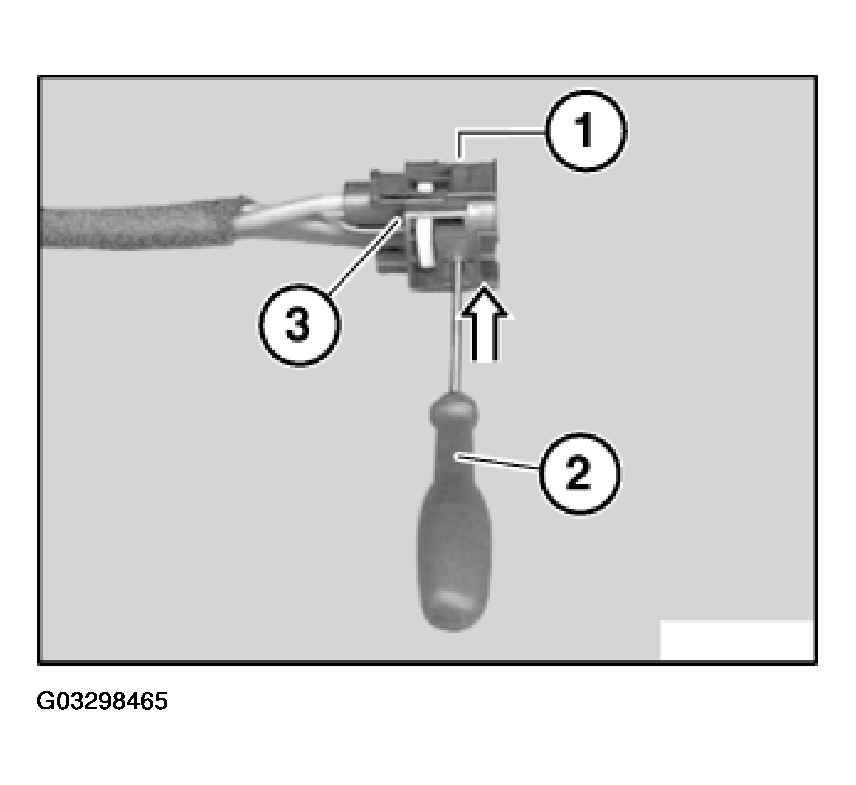

Press lock (1) with suitable tool (2) in direction of arrow out of socket housing (3).

Fig 1: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

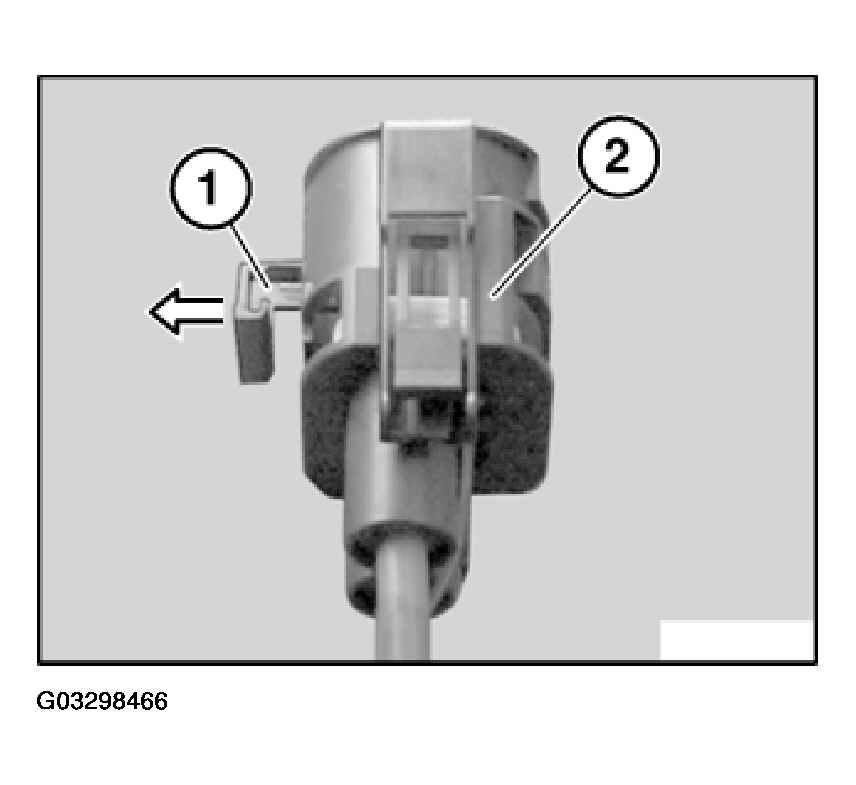

Pull lock (1) out of socket housing (2).

Fig 2: Pulling Lock Out Of Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

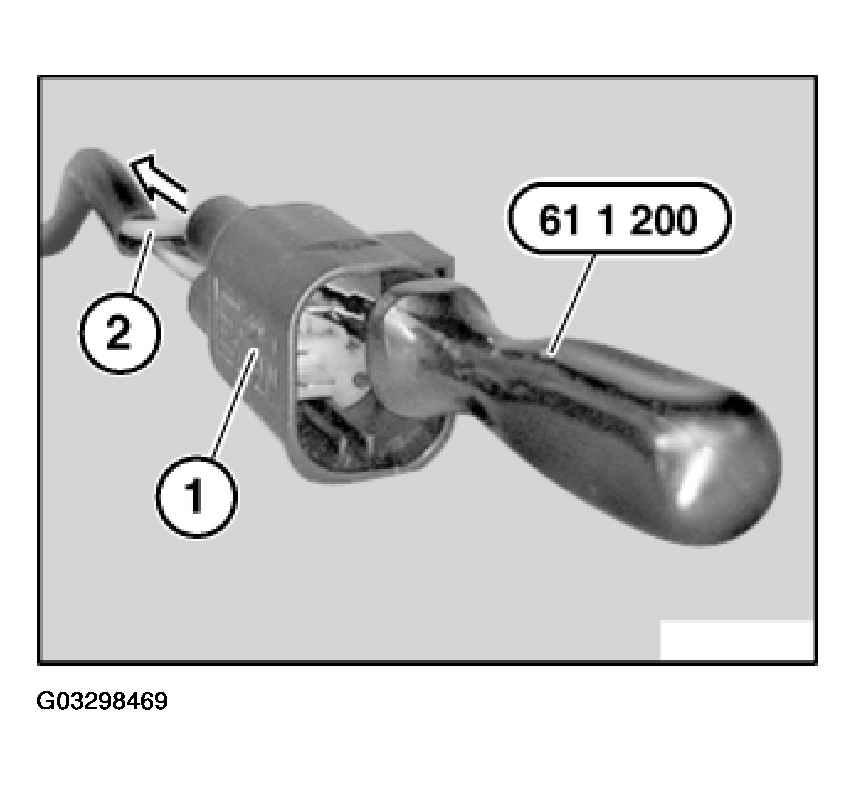

Insert special tool 61 1 200 into socket housing (1) and pull out lead with LCC contact (2) in direction of arrow.

Fig 3: Inserting Special Tool 61 1 200

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

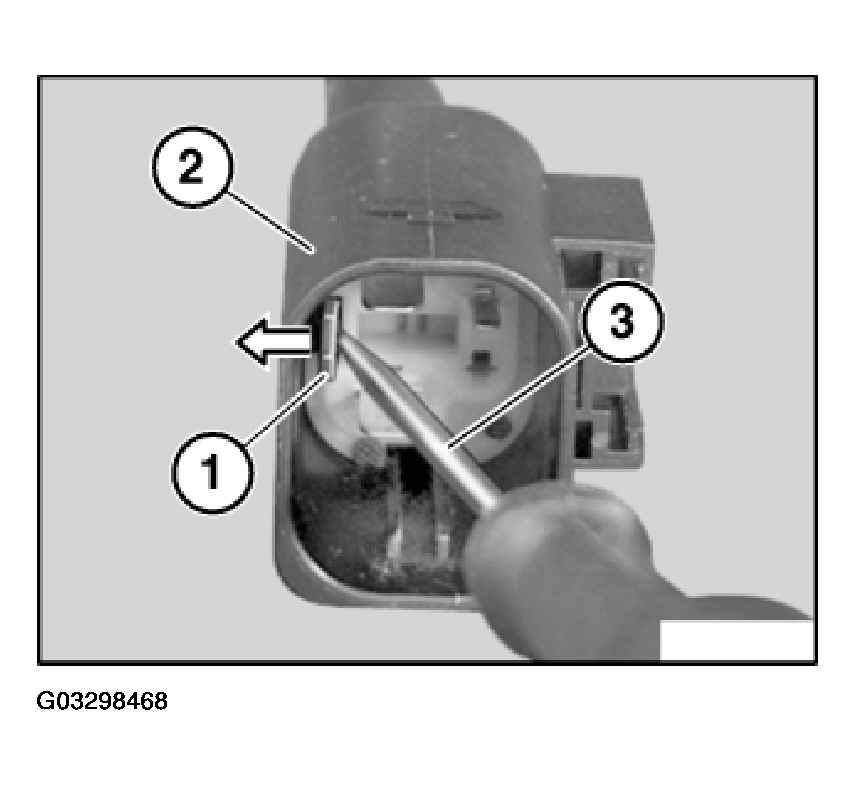

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in direction of arrow.

Fig 4: Unlocking Locking Slide Of Pin Housing

Courtesy of BMW OF NORTH AMERICA, INC.

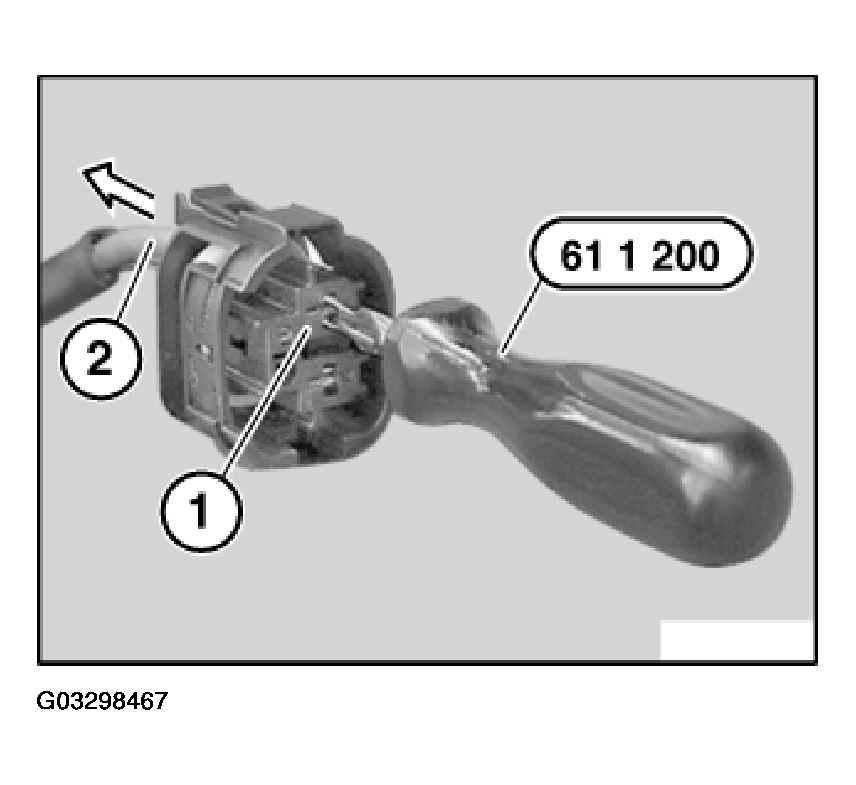

Insert special tool 61 1 200 into pin housing (1) and pull out lead with LCC contact (2) in direction of arrow.

Fig 5: Inserting Special Tool 61 1 200 Into Pin Housing

Courtesy of BMW OF NORTH AMERICA, INC.
