Power Flow Schematic

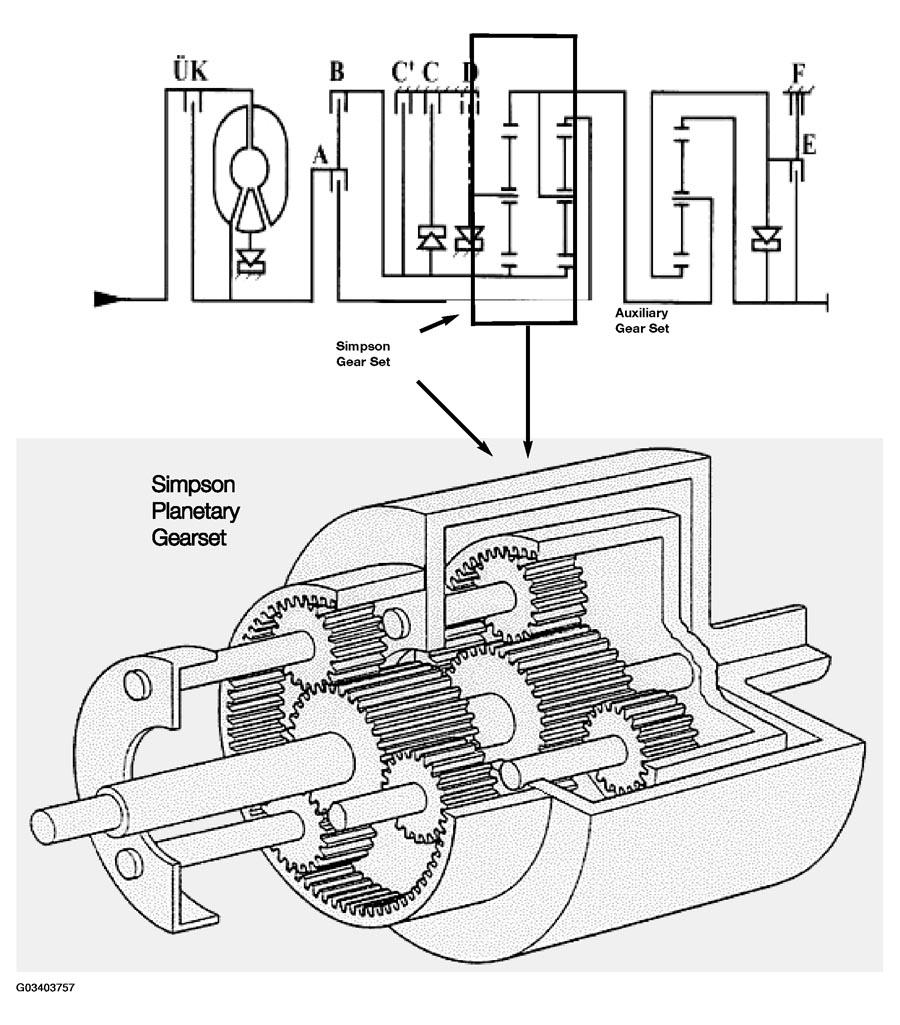

In order to understand power flow schematics, a relationship must be drawn between the actual components and the schematic representation. In our example, we are going to use the 4HP22/24 power flow schematic. The 4HP22/24 transmission uses a Simpson Planetary Gearset and an auxiliary gearset. The auxiliary gear set is a simple planetary gearset.

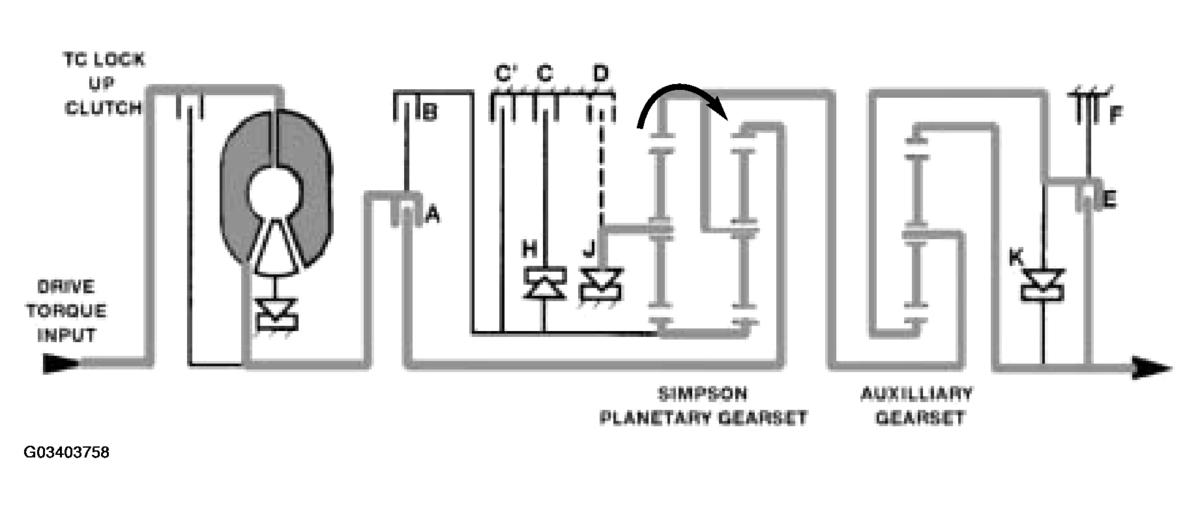

Power flow in first gear - Drive torque is applied to the torque converter impeller and transferred to the turbine. The turbine shaft rotates clockwise (CW). The "A" clutch locks the turbine shaft to the rear input ring gear. The rear input ring gear rotates CW driving the rear planet pinions CW. The planetary pinions drive the common sun gear CCW, which in turn drive the front planet pinions CW. The front planetary carrier is held from rotating CCW by one way clutch "J". The front planetary pinions which are rotating CW drive the front ring gear/rear carrier CW. The rear planetary carrier is rotating CW and is driving the planetary carrier from the auxiliary gear set. The "E" clutch in the auxiliary gear set is holding the Sun gear and the ring gear together. Therefore the auxiliary gear set is locked in a 1:1 ratio.

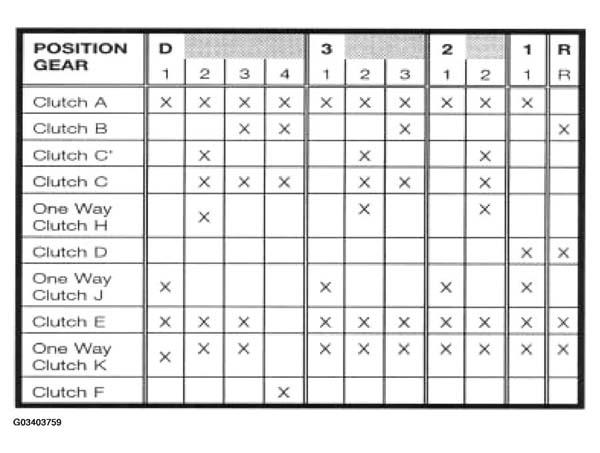

One Way Clutch "J" is locked prevent the front planetary carrier from rotating CCW. One Way Clutch "H" is not used and One Way Clutch "K" is locked. One way clutch "K" is used to prevent an interruption in power flow before the "E" clutch is locked during the 4-3 shift.
