41 21... Replacing Side Member Attachment On Left Or Right (Vehicles Up To 09/2011)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Side member, inside left

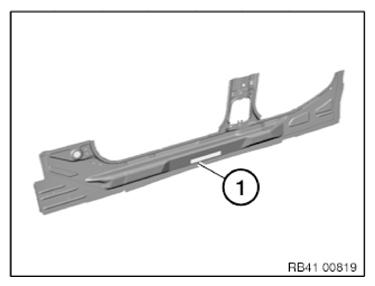

Fig 1: Identifying Side Member, Inside Left
Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

IMPORTANT: Ensure that the sensor is CORRECTLY POSITIONED .
If the sensor is installed in the wrong position, this may lead to an operating failure of the airbag!

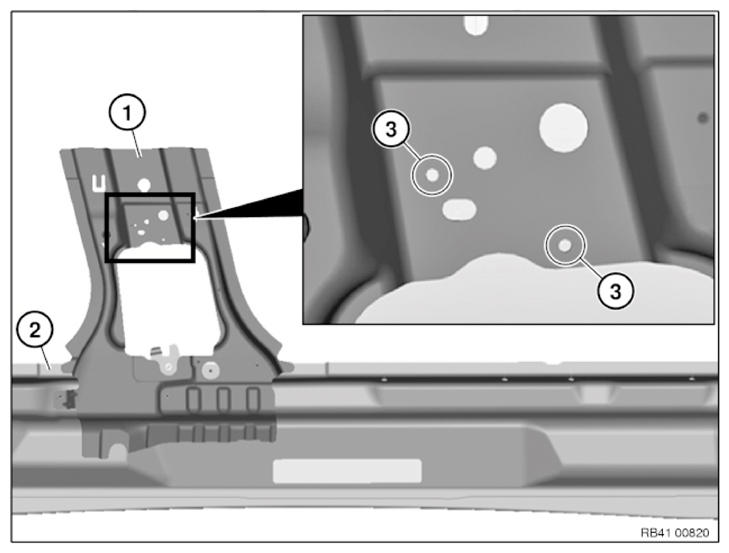

Fig 2: Identifying Side Member Attachment From Side Member And Drill Out Bore Holes For Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach side member attachment (1) from side member (2).

Drill out bore holes (3) for screw size (7 mm) and deburr.
