6113... Repairing airbag leads (build date/version affected 04/2008 to 07/2008): Notes

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt pretensioner or side airbag, resulting in injuries.

Switch off ignition!

IMPORTANT: Always use repair cable set for belt tensioner and seat airbag in event of a fault on driver's and front passenger sides.

Necessary preliminary tasks:

Move driver's seat/front passenger seat fully back and upwards.

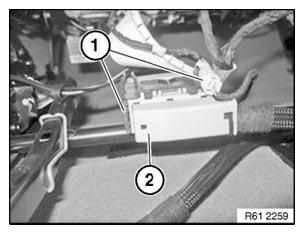

Unlock plug connections (1) and disconnect.

Disconnect plug (2).

Fig 1: Identifying Plug Connections And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable tie (1).

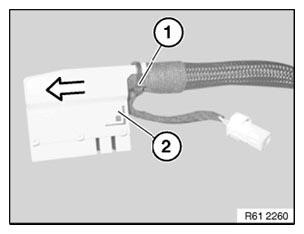

Unlock cap (2) on both sides and pull out in direction of arrow.

Installation:

Secure wiring harness for strain relief with cable tie on plug housing.

Fig 2: Pulling Out Cap In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Cables Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Strip insulation (1) and disconnect cables in accordance with table.

DRIVER SEAT PINS REFERENCE CHART

Driver's seat:
Pin 16	Yellow/Red	GSF+
Pin 17	Yellow/Brown	GSF-
Pin 18	Yellow	SIAVL+ for LHD
Pin 18	Blue	SIAVR+ for RHD
Pin 19	Brown	SIAVL - /VR -

PASSENGER SEAT PINS REFERENCE CHART

Passenger's seat:
Pin 16	Blue/Red	GSBF+
Pin 17	Blue/Brown	GsBF-
Pin 18	Blue	SIAVR+ for LHD
Pin 18	Yellow	SIAVL+ for RHD
Pin 19	Brown	SIAVR - /VL-

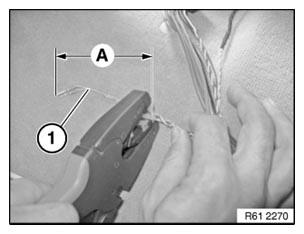

Cut cable (1) with BMW-recommended cable stripper and strip insulation.

A. Dimension A = 11 cm

Fig 4: Cutting Cable With BMW-Recommended Cable Stripper

Courtesy of BMW OF NORTH AMERICA, INC.

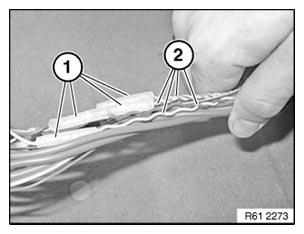

Cut repair cable (1) with BMW-recommended cable stripper and strip insulation.

Cut repair wiring harness 11 cm.

A. Dimension A = 11 cm

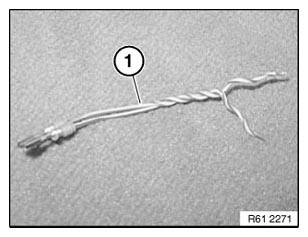

Fig 5: Identifying Repair Cable

Courtesy of BMW OF NORTH AMERICA, INC.

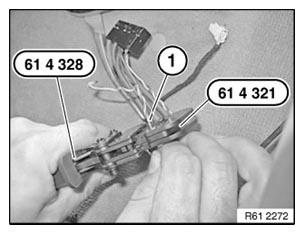

Connect repair cable (1) with butt connector to vehicle wiring harness.

Universal matrix 61 4 328
Pliers 61 4 321

Fig 6: Connecting Repair Cable With Butt Connector To Vehicle Wiring Harness
Courtesy of BMW OF NORTH AMERICA, INC.

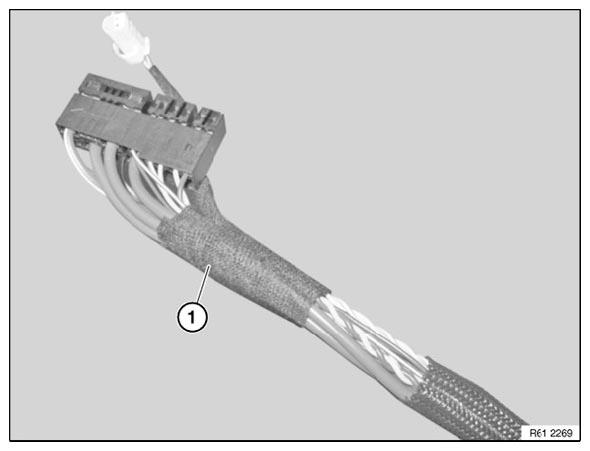

Slide SHRINK-ON HOSES (1) over ignition circuit leads (2).

IMPORTANT: Do not burn shrink-on sleeve.

With hot-air blower, shrink the shrink-on hose on both sides of shrink-on hose until glue emerges uniformly all round.

Fig 7: Sliding Shrink-On Hoses Over Ignition Circuit Leads

Courtesy of BMW OF NORTH AMERICA, INC.

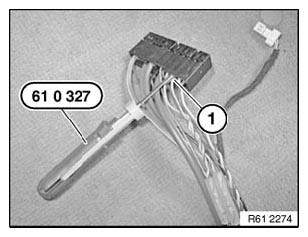

Connect ignition circuit lead (1) with special tool 61 0 327 in accordance with table.

Fig 8: Connecting Ignition Circuit Lead With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
