52 17... Replacing upholstery for front seat thigh support

Necessary preliminary tasks:

• Remove THIGH SUPPORT
  Fig 1: Identifying Front Seat Thigh Support Cover And Plug Connection

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Cover welt is fastened by hooks in cover (3).

Remove plug connections (4) and feed out through cover (3).

Remove cover (3) from upholstery and cover (1).

Version with seat heating or climate control:

Feed out cable (1) and remove upholstery (2).

Installation note:

Ensure correct cable routing (1).

Fig 2: Identifying Cable And Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Version with climate control:

• Remove separating net (1).
• Lift out fan (2).
  Fig 3: Identifying Separating Net And Fan

  Courtesy of BMW OF NORTH AMERICA, INC.

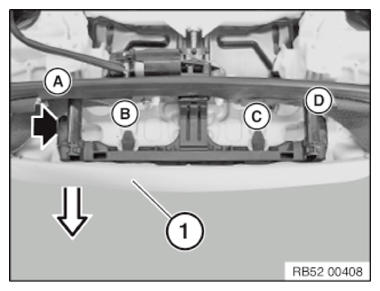

Move the thigh support (1) completely to the front.

Raise latch mechanisms in succession from A to D, pulling the thigh support (1) forward at the same time.

Fig 1: Pulling Thigh Support Forward

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

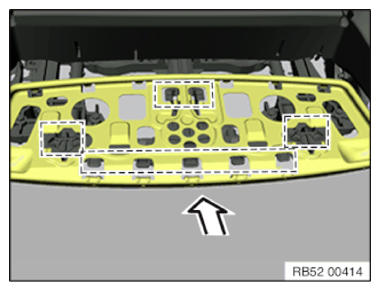

Insert support for thigh support in correct position in the guide and lock.

Fig 2: Inserting Thigh Support In Correct Position In Guide And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

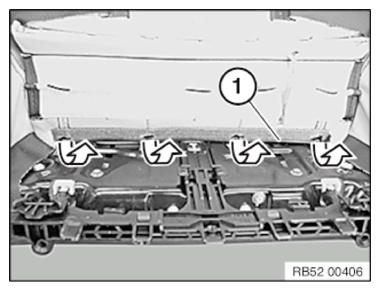

Detach welt (1) from metal tabs.

Fig 3: Detaching Welt From Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

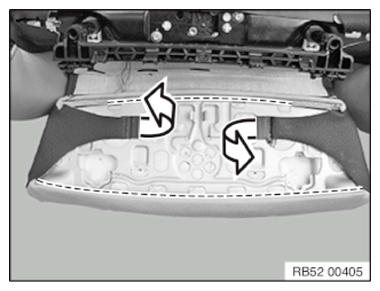

Detach welt from support for thigh support.

Remove the mounting plate and foam part of the thigh support.

Fig 4: Detaching Welt From Support For Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.
