52 14... Performing function check with adapter cable (for seat repairs)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Seat function check:

NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 150 .

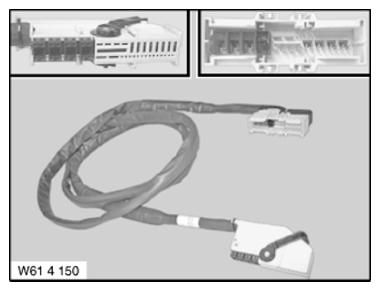

Fig 1: Identifying Adapter Cable (61 4 150)

Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 150 .

RSE (rear passenger compartment monitor) function check

NOTE: The function check of the RSE (rear passenger compartment monitor) on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 140 .

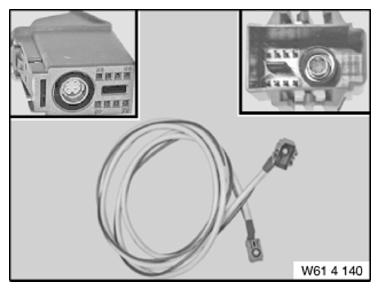

Fig 2: Identifying Adapter Cable (61 4 140)

Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 140 .
