61 13... Inline plugs, 8-, 12-pin, System D2.5

Move upper section of connector (1) and lower section of connector (2) against each other in direction of arrow.

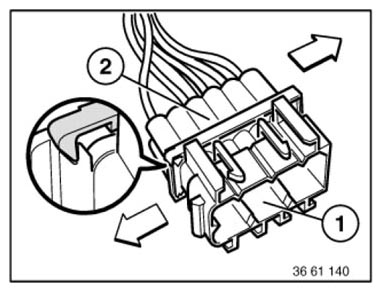

Fig 1: Moving Upper And Lower Section Of Connector In Opposite Direction

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 303 press back retaining hook(3) of corresponding contact and pull out cable with contact.

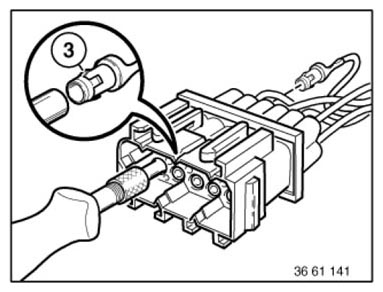

Fig 2: Pressing Retaining Hook Of Corresponding Contact Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
