32 00... General chassis and suspension definitions

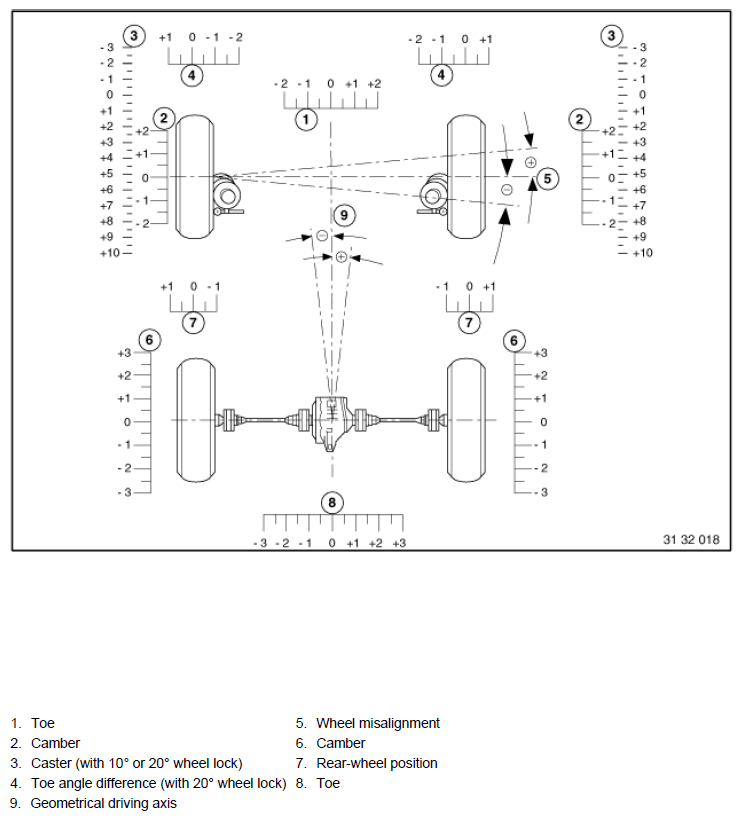

Fig 1: Chassis And Suspension Angles Diagram
G06908220Courtesy of BMW OF NORTH AMERICA, INC.
  1. Toe
  2. Camber
  3. Caster (with 10° or 20° wheel lock)
  4. Toe angle difference (with 20° wheel lock)
  5. Wheel misalignment
  6. Camber
  7. Rear-wheel position
  8. Toe
  9. Geometrical driving axis
