61 13... In-line plugs, 2-pin, System JPT ELA

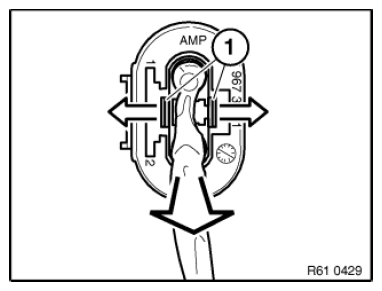

Press lock (1) in direction of arrow and slide connector forward.

Fig 1: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

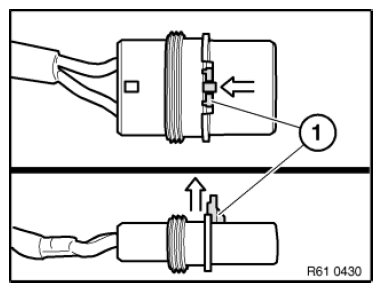

Press lock (1) downward and slide out to one side.

Fig 2: Pressing Lock Downward

Courtesy of BMW OF NORTH AMERICA, INC.

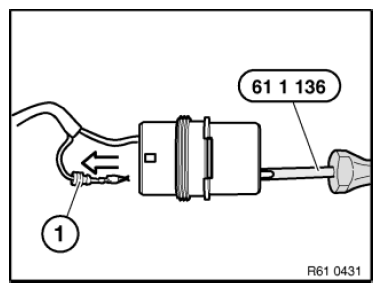

Unlock contact with special tool 61 1 136 and pull out cable (1) and contact towards rear.

Fig 3: Pulling Out Cable

Courtesy of BMW OF NORTH AMERICA, INC.
