Socket housing

Raise lock (1) on housing (2).

Push contact carrier (3) from rear out of housing (2).

NOTE: Pushing out the contact carrier releases the secondary locks of the socket contacts.

Fig 1: Pushing Out Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

Fig 2: Holding Down Retaining Hook Of Socket Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook in secondary lock (1) again and pull cable with socket contact (2) completely out of contact carrier (3).

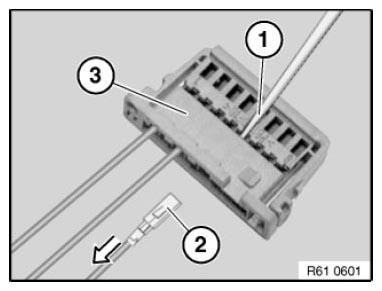

Fig 3: Pulling Cable With Socket Contact

Courtesy of BMW OF NORTH AMERICA, INC.
