51 14... Instructions for attaching number/letter designation combination

NOTE: The model designation is attached with adhesive and can not be reused.
The model designation must be attached at room temperature >±18 ° C.
The model designation must be removed at stove-enameling temperatures exceeding 80 °C.

NOTE: The following work steps are described using the "316 i" as the example.

Removing:

Coat nylon string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1) from rear lid (2).

Remove remainder of adhesive layer with adhesive remover (sourcing reference: BMW Parts Service).

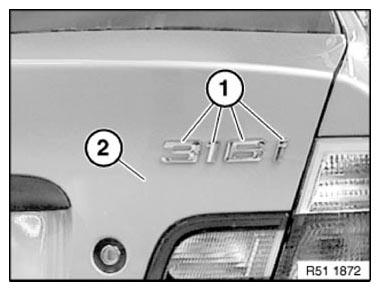

Fig 1: Identifying Rear Lid Model Designation

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly:

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a carrier film (2).

IMPORTANT: Adhesive areas must be dry and free of dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

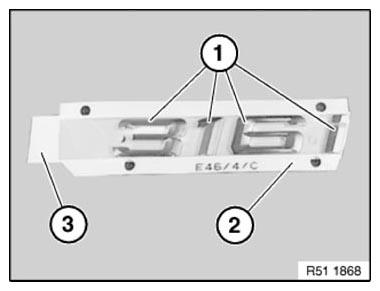

Fig 2: Identifying Carrier Film And Liner

Courtesy of BMW OF NORTH AMERICA, INC.

Remove liner (3) (protective strip for adhesive surface).

Firmly press down model designation.

Remove carrier film (2).
