99 00... Interior painting

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Follow GENERAL INSTRUCTIONS ON PAINTING .

Engine compartment, complete

Carry over the area shown symmetrically to the other side of the car.

Fig 1: Identifying Engine Compartment Paint Area, Complete
G08531358Courtesy of BMW OF NORTH AMERICA, INC.

Engine bulkhead

Fig 2: Identifying Engine Bulkhead Paint Area
G08531359Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier (inside only)

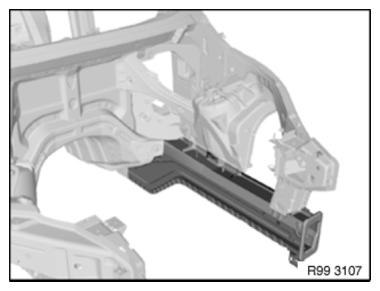

Fig 3: Identifying Engine Carrier Paint Area (Inside Only)
G08531360Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier (partial replacement before front axle)

Inner side shown

Fig 4: Identifying Engine Carrier Paint Area (Partial Replacement Before Front Axle) - Inner Side
G08531361Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier (partial replacement before front axle)

Outer side shown

Fig 5: Identifying Engine Carrier Paint Area (Partial Replacement Before Front Axle) - Outer Side
G08531362Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Inner side shown

Fig 6: Identifying Front Wheel Arch (Complete) - Inner Side
G08531363Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Outer side shown

Fig 7: Identifying Front Wheel Arch (Complete) - Outer Side
G08531364Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment floor plate

Carry over the area shown symmetrically to the other side of the car.

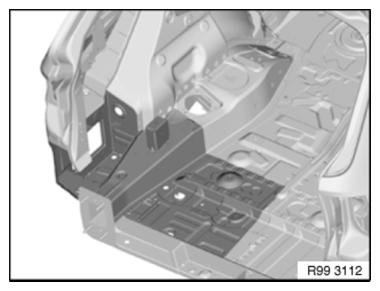

Fig 8: Identifying Luggage Compartment Floor Plate Paint Area
G08531365Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, rear

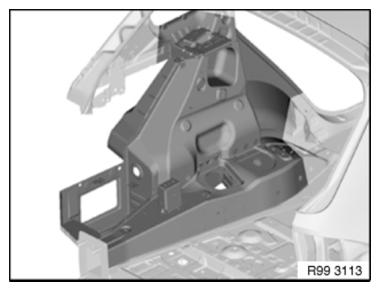

Fig 9: Identifying Rear Wheel Arch Paint Area
G08531366Courtesy of BMW OF NORTH AMERICA, INC.
