99 00... Sectional painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

Door pillar, middle

Area specification applies to all paint stages.

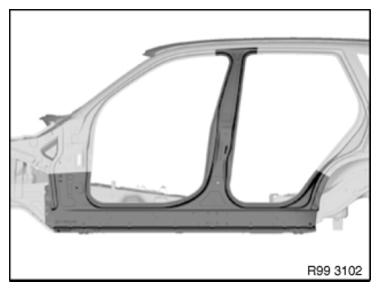

Fig 1: Identifying Door Pillar Paint Area - Middle

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 1.

Fig 2: Identifying Roof Frame Paint Area - Front

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 3.

Fig 3: Identifying Roof Frame Paint Area - Front

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame

Area specification applies to all paint stages.

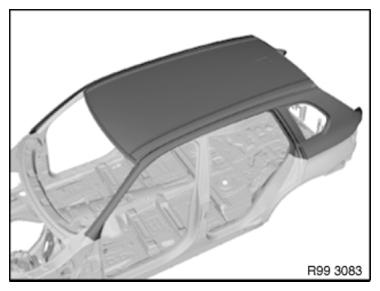

Fig 4: Identifying Roof Frame Paint Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roof with roof frame

Area specification applies to all paint stages.

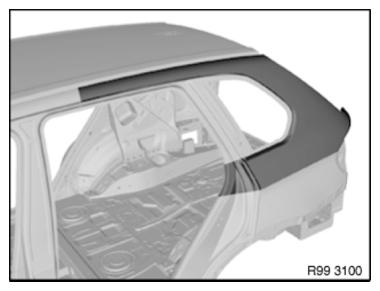

Fig 5: Identifying Roof Paint Area With Roof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Side panel, rear (up to roof frame, middle)

Area specification applies to paint stage 1.

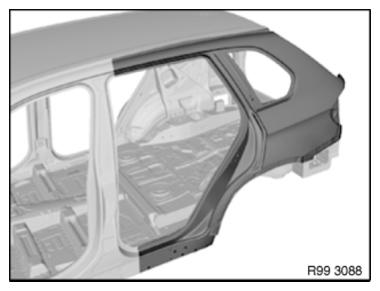

Fig 6: Identifying Rear Side Panel Paint Area (Up To Roof Frame) - Middle

Courtesy of BMW OF NORTH AMERICA, INC.

Side panel, rear (up to roof frame, middle)

Area specification applies to paint stage 3.

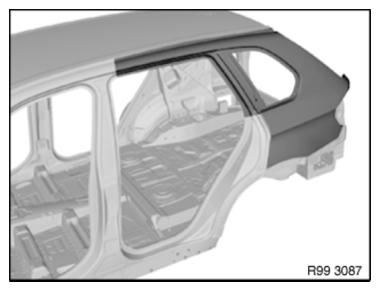

Fig 7: Identifying Rear Side Panel Paint Area (Up To Roof Frame) - Middle

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel above cutting edge

Area specification applies to all paint stages.

Fig 8: Identifying Rear Side Panel Paint Area Above Cutting Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel below cutting edge

Area specification applies to all paint stages.

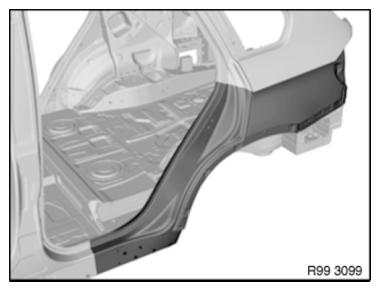

Fig 9: Identifying Rear Side Panel Paint Area Below Cutting Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Cover for entrance

Area specification applies to all paint stages.

Fig 10: Identifying Entrance Cover Paint Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid above cutting edge, middle

Area specification applies to all paint stages.

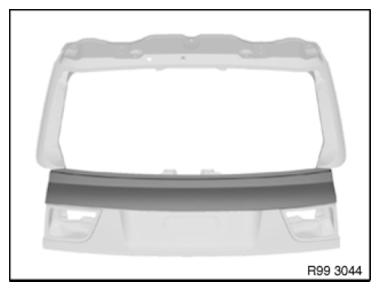

Fig 11: Identifying Rear Lid Paint Area Above Cutting Edge (Middle)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid  below cutting edge, middle

Area specification applies to all paint stages.

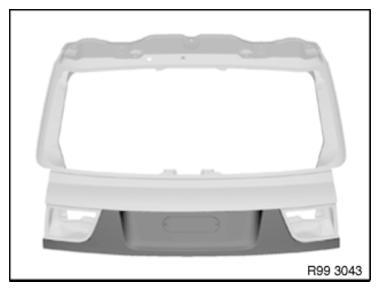

Fig 12: Identifying Rear Lid Paint Area Below Cutting Edge (Middle)
